Exterior

• Exterior Height: 14 ft 3 in
• Wing Span: 50 ft 3 in
• Length: 35 ft 6 in

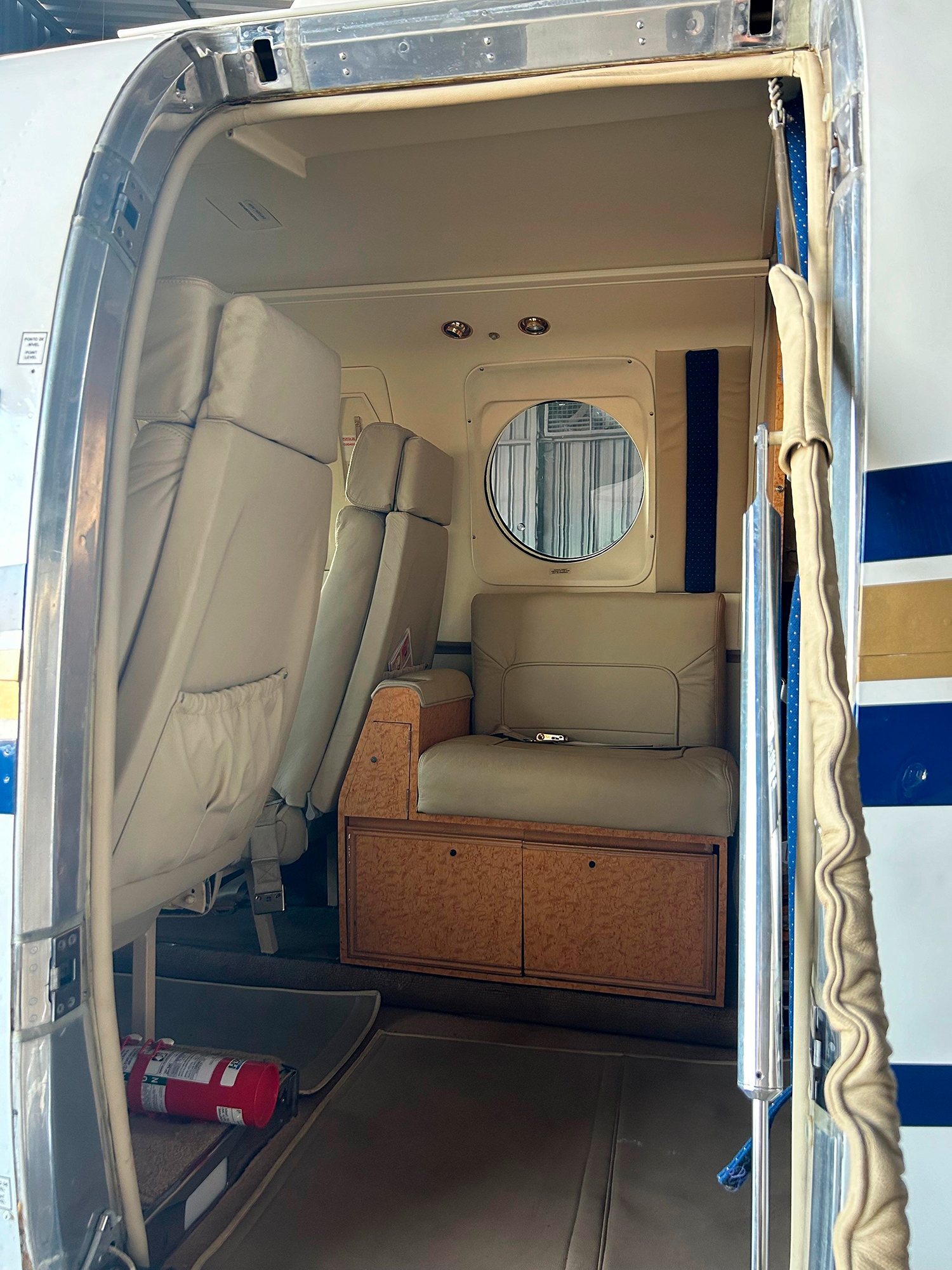

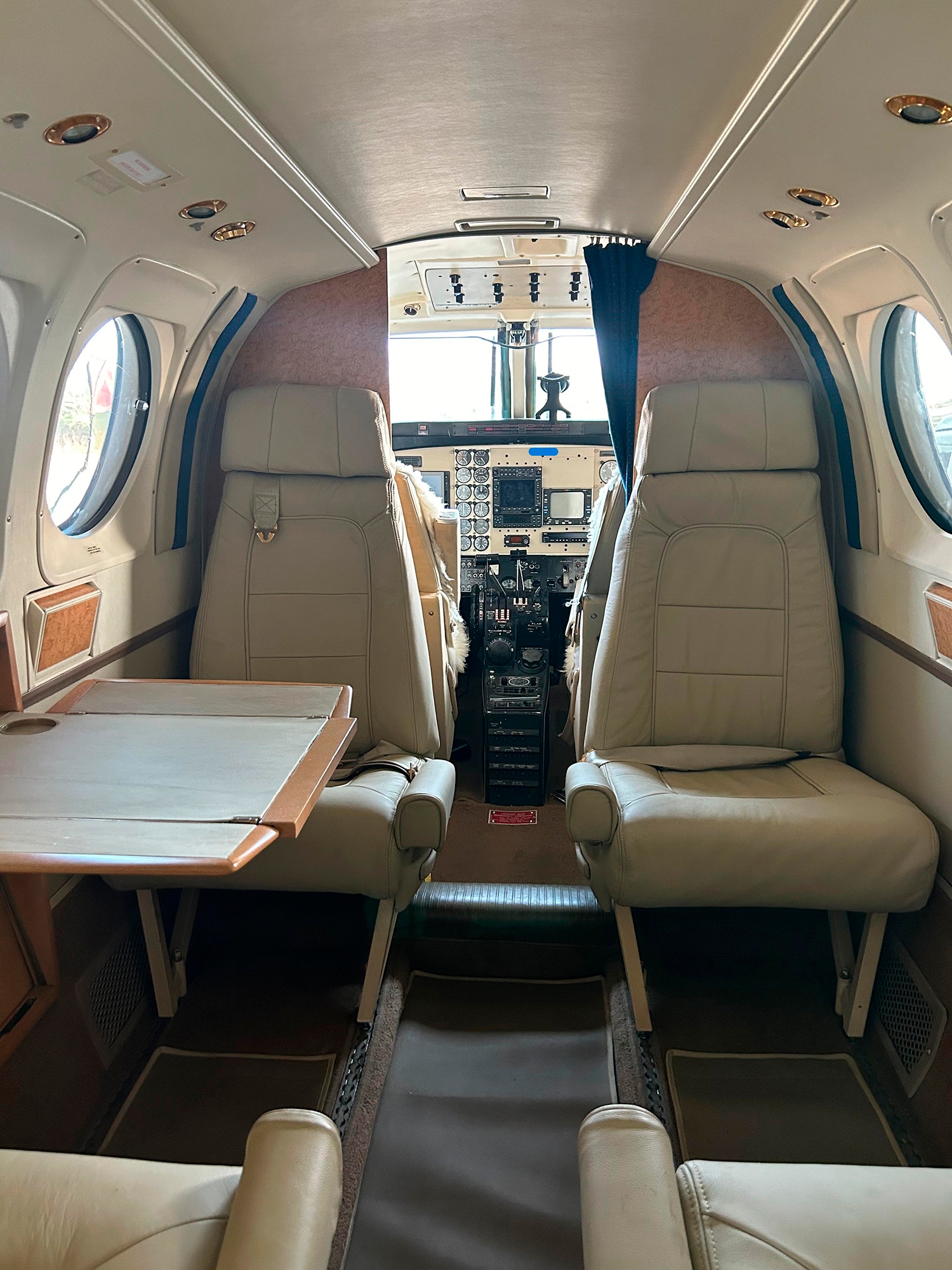

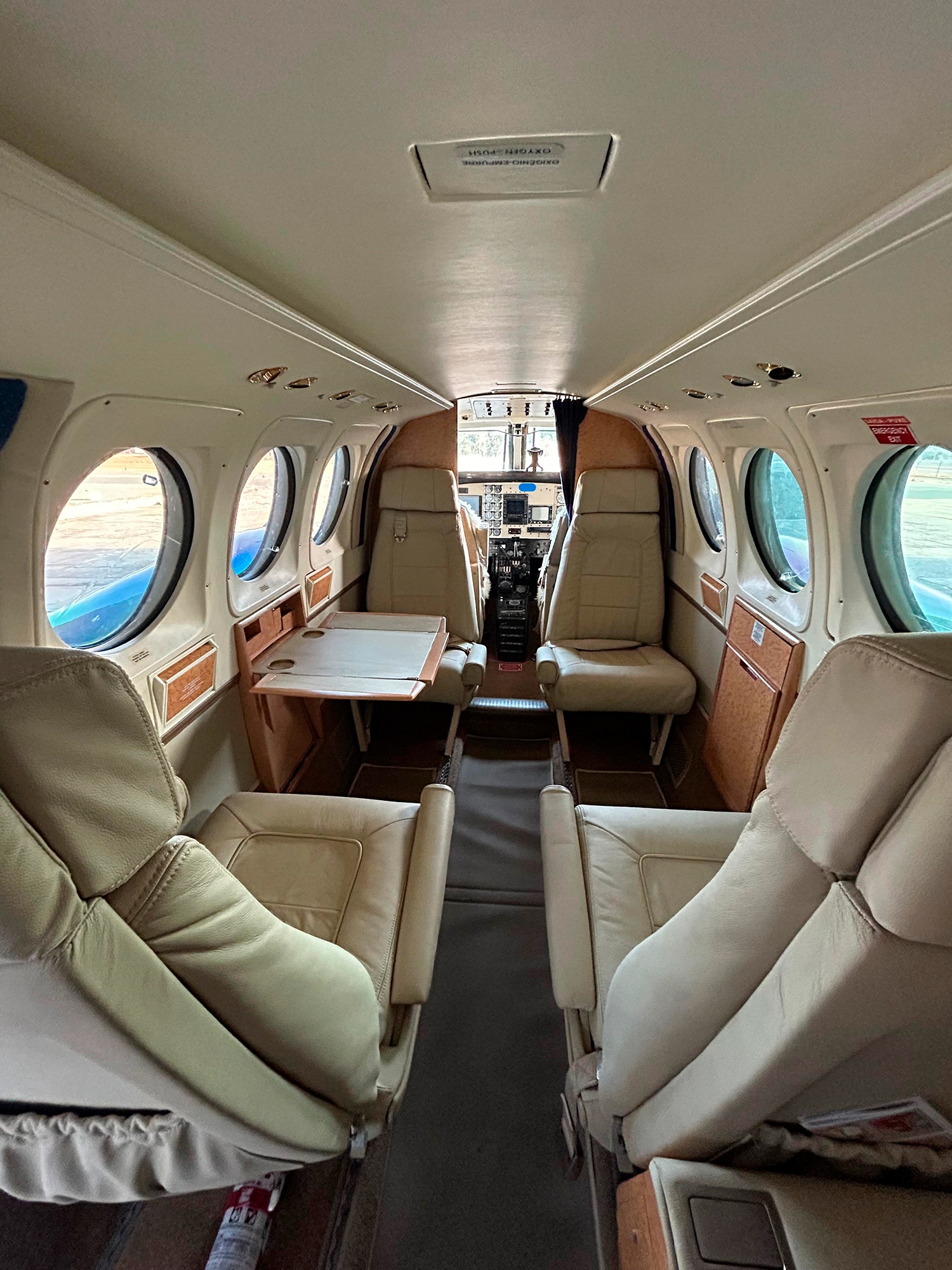

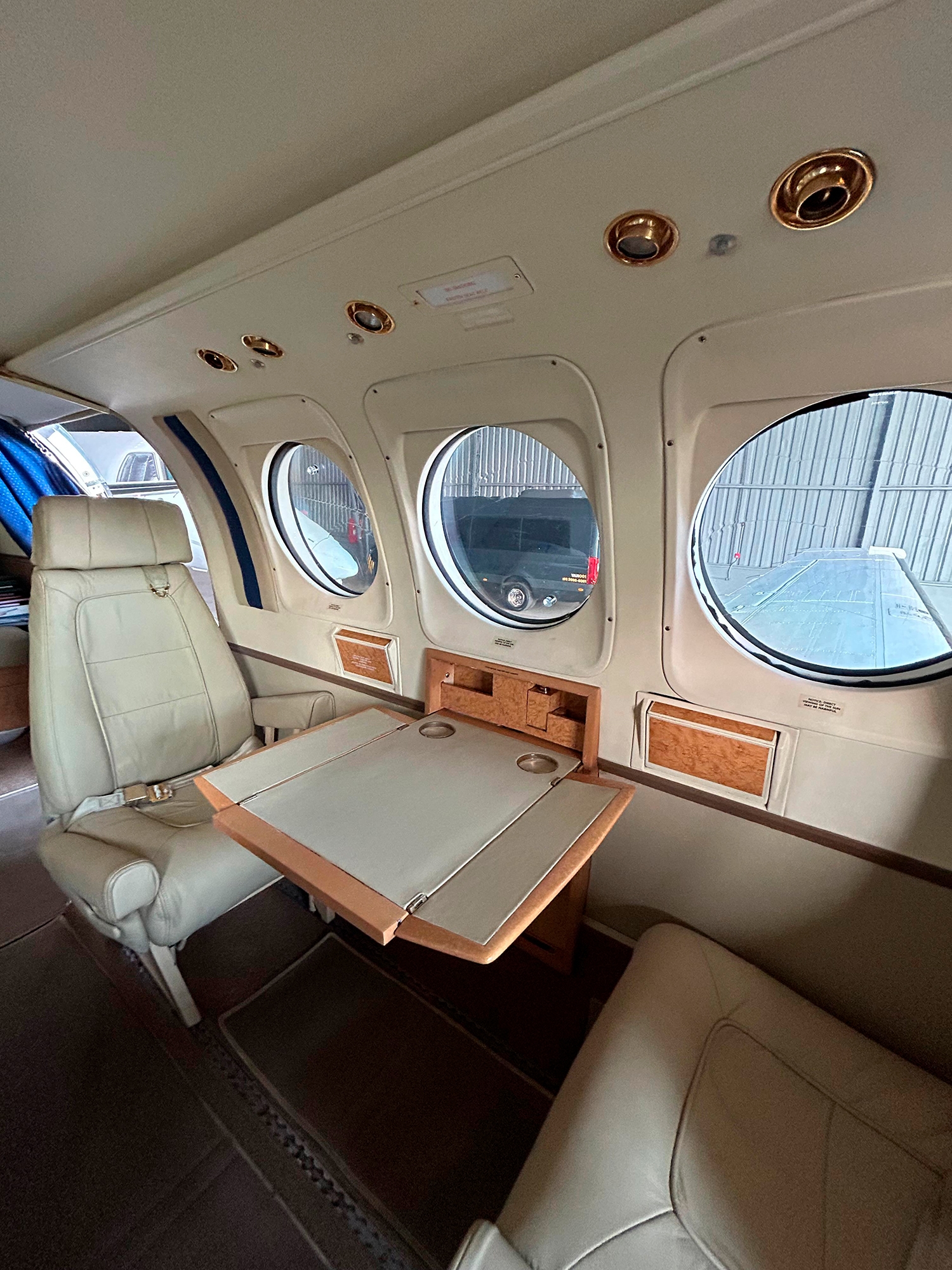

Interior

• Cabin Height: 4 ft 10 In
• Cabin Width: 4 ft 6 In
• Cabin Length: 12 ft 5 In
• Cabin Volume: 227 cu ft

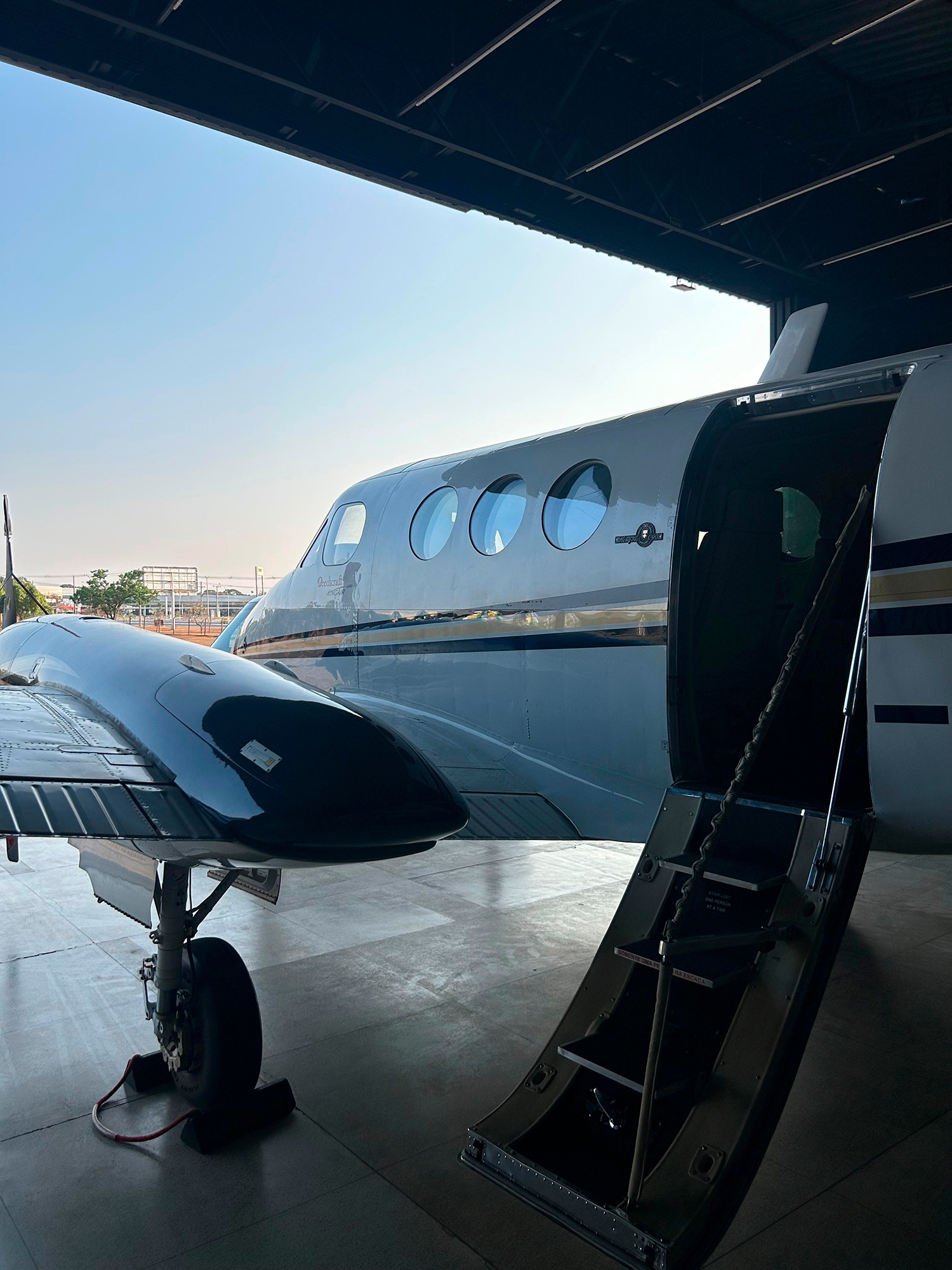

• Door Height: 4 ft 3 In
• Door Width: 2 ft 3 In
• Internal Baggage: 54 cu ft

Operating Weights

• Max T/O Weight: 10100 Lb
• Max Landing Weight: 9600 Lb
• Operating Weight: 7000 Lb
• Fuel Capacity: 2573 lbs Lb
• Payload W/Full Fuel: 587 Lb
• Max Payload: 3100 Lb

Range

• Normal Range: 830 nm
• Max Range: 1125 nm
• Service Ceiling: 30000 ft

Distances

• Balanced Field Length: 5300 ft
• Landing Distance: 4000 ft

Performance

• Rate of Climb: 2,000 fpm
• Climb Rate One Engine Inop: 580 fpm
• Max Speed: 250 kts
• Normal Cruise: 234 kts
• Economy Cruise: 195 kts

Power Plant

• Engines: 2
• Engine Mfg: Pratt & Whitney Canada
• Engine Model: PT6A-21
