*Ex-works

Valor de venda + impostos para nacionalização

Airframe

• Total Time: 2,326
• Total Landings: 2,281

Engine Program

• Engine Maintenance Program: TAP Blue

Engine 1

• Engine 1 Make/Model: WILLIAMS FJ44-4A
• Engine 1 Serial Number: 211243
• Engine 1 Time: 2,326 SNEW
• Engine 1 Cycles: 2,281

Engine 2

• Engine 2 Make/Model: WILLIAMS FJ44-4A
• Engine 2 Serial Number: 211244
• Engine 2 Time: 2,314 SNEW
• Engine 2 Cycles: 2,264

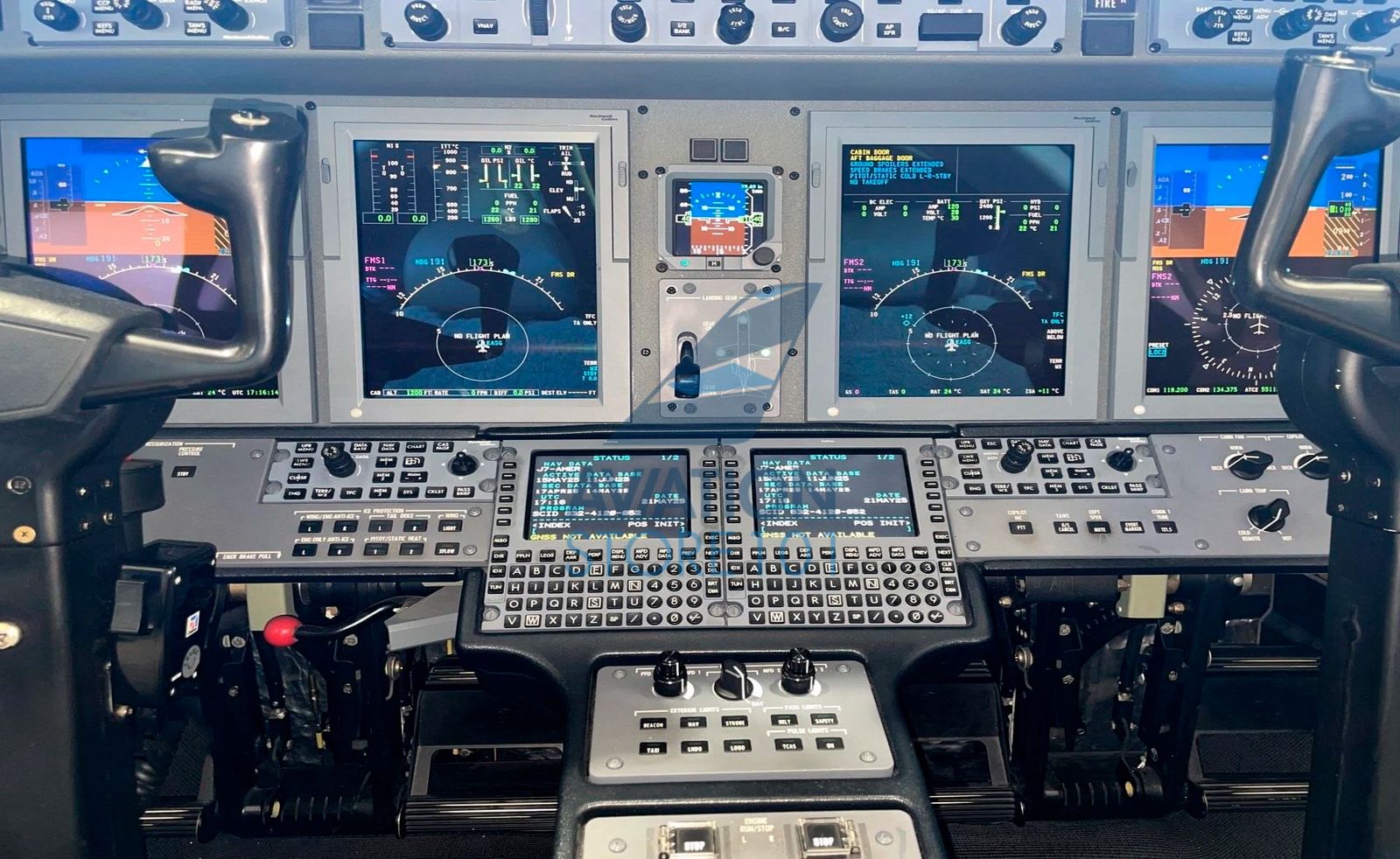

Avionics

• Collins Proline 21 Avionics Suite
• EFIS – Four 8×10 inch Color, Active Matrix Liquid Crystal Displays
• FMS – Dual Collins FMS-3000
• GPS – Dual Collins GPS-4000S
• ADC – Dual Collins ADC-3000
• IFIS – Collins IFIS-5000
• NAV – Dual Collins NAV-4500
• DME – Dual Collins DME-4000
• ELT – Artex C406-N
• VHF Com – Dual Collins VHF-4000 Transceivers
• Weather Radar – Multi-Scan RTA-4112 Weather Radar
• Radar ALT – Collins ALT-4000
• XPNDR – Dual Collins Mode S Transponders
• TCAS – TCAS II Change 7.1
• CVR – L-3 Communications FA2100
• EGPWS – Mark V w/RAAS
• ADS-B Out

Additional Equipment

• Wifi
• ProParts
• FDR
• 2ND FMS
• EXTERNALLY SERVICEABLE LAV
• WIFI – ATG 4000

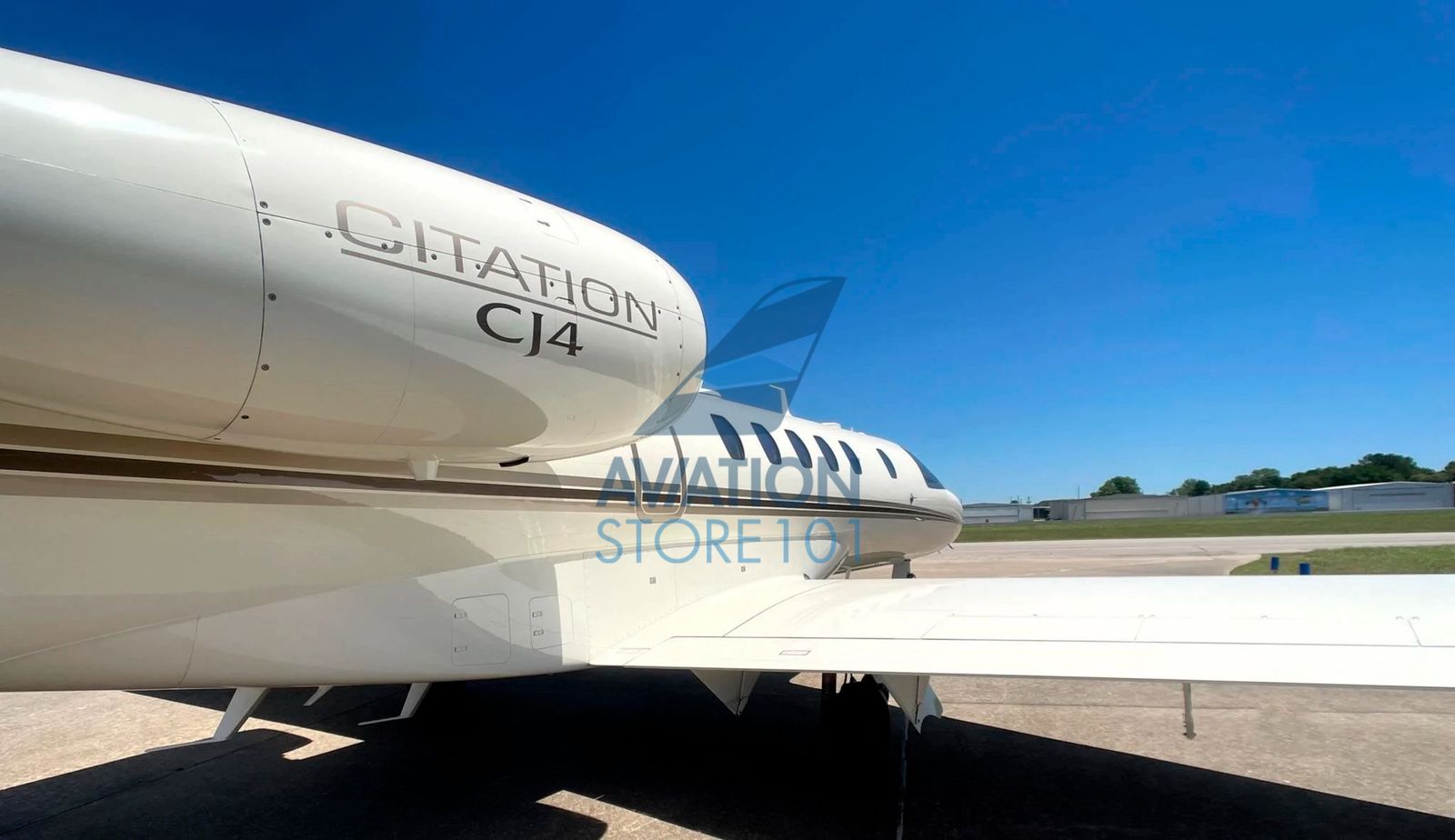

Exterior

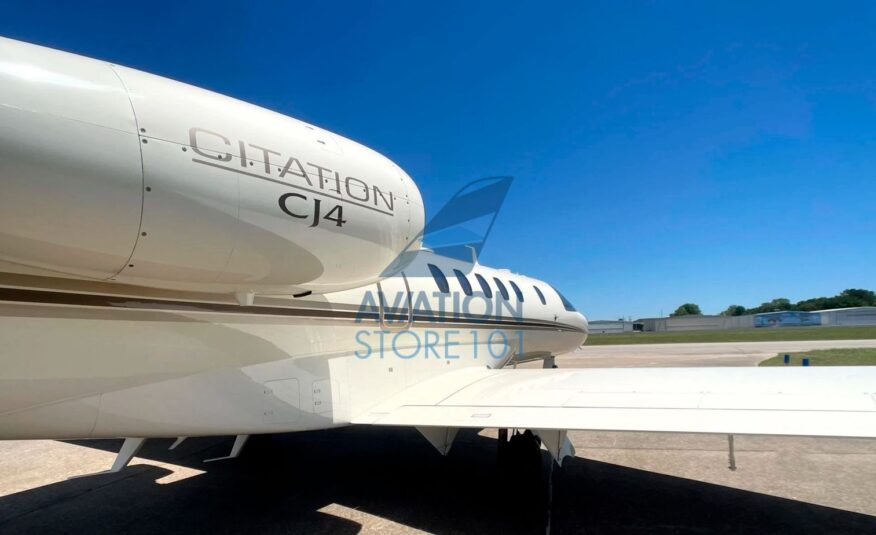

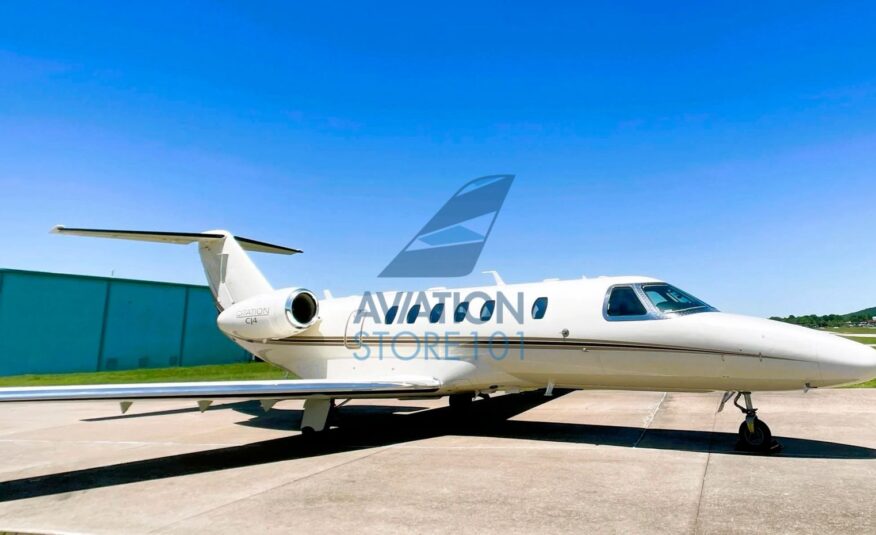

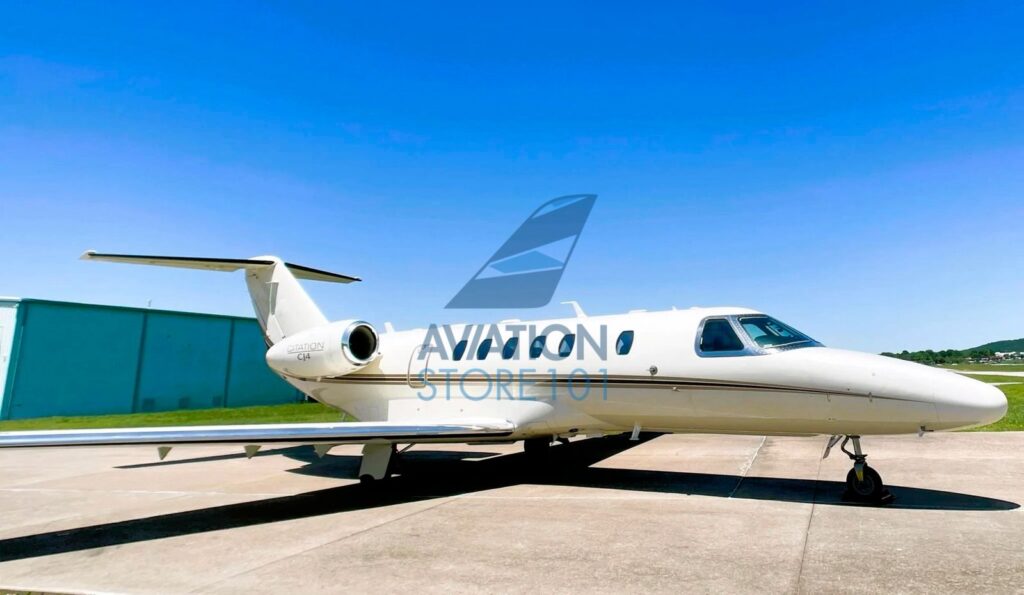

• Off White with Harvest Gold and Winfield Bronze Metallic Stripes.

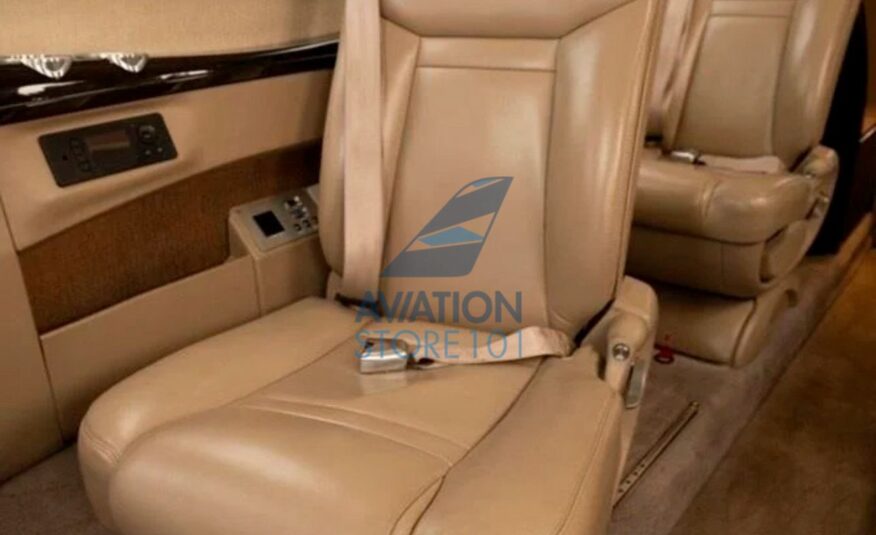

Interior

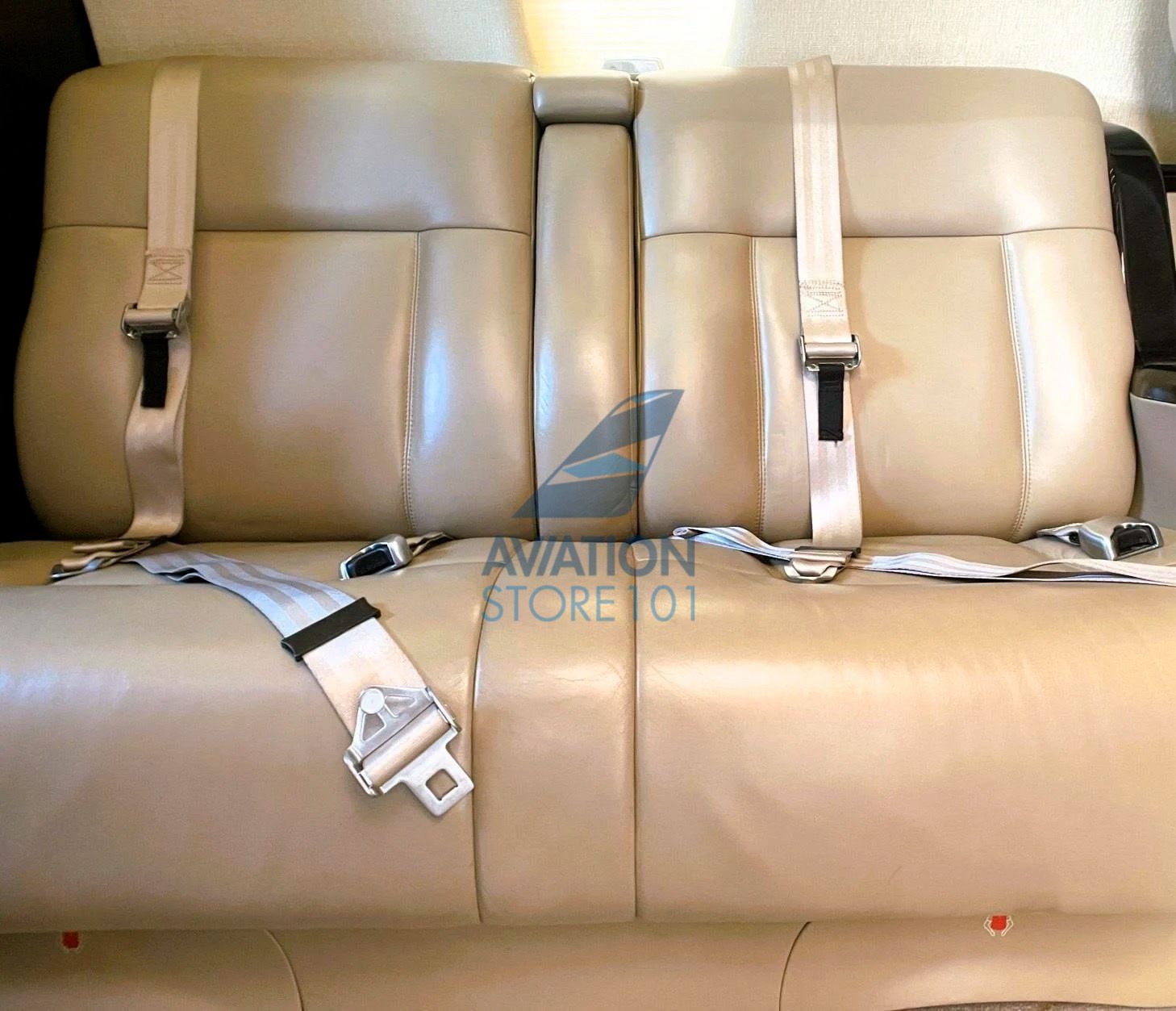

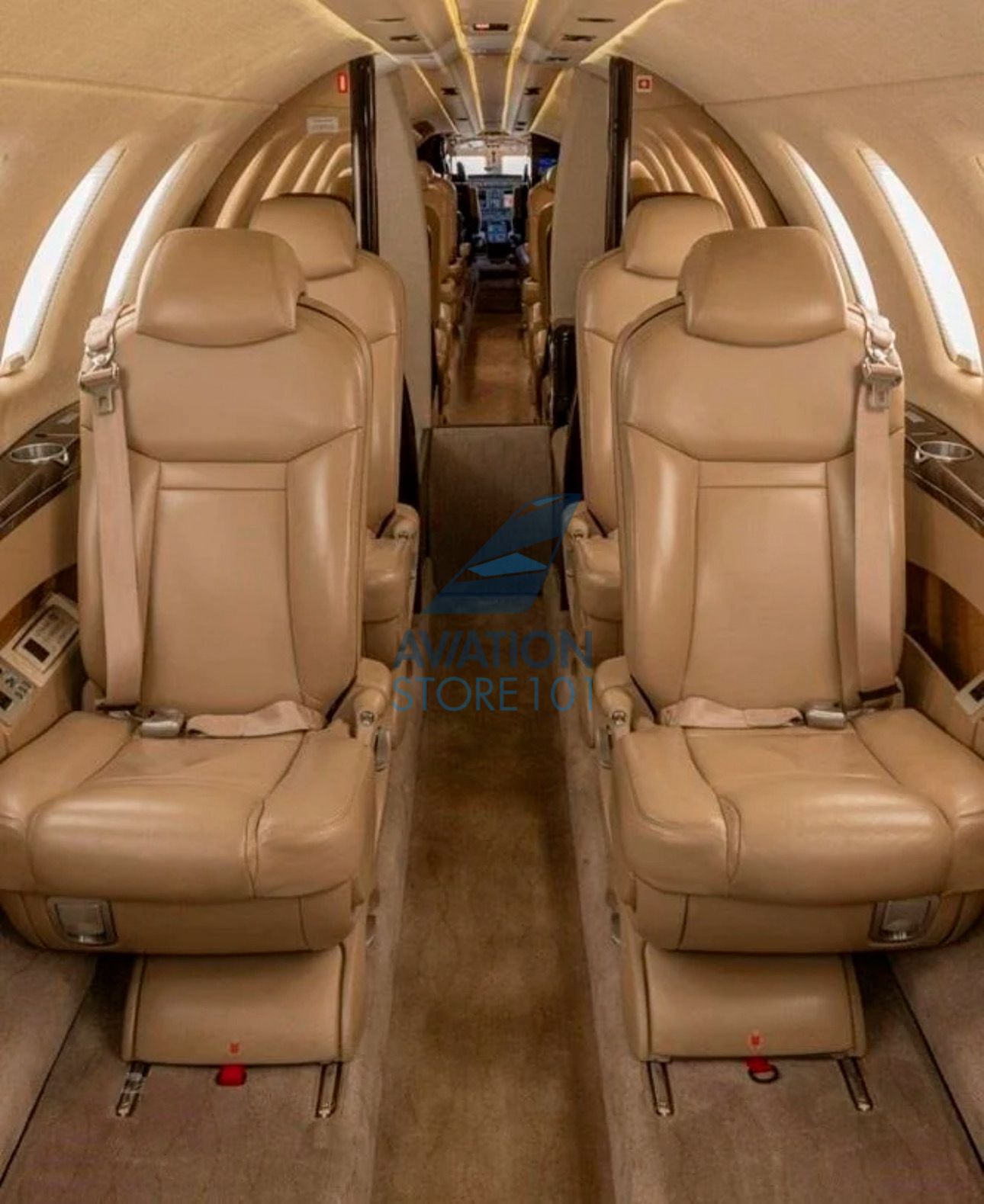

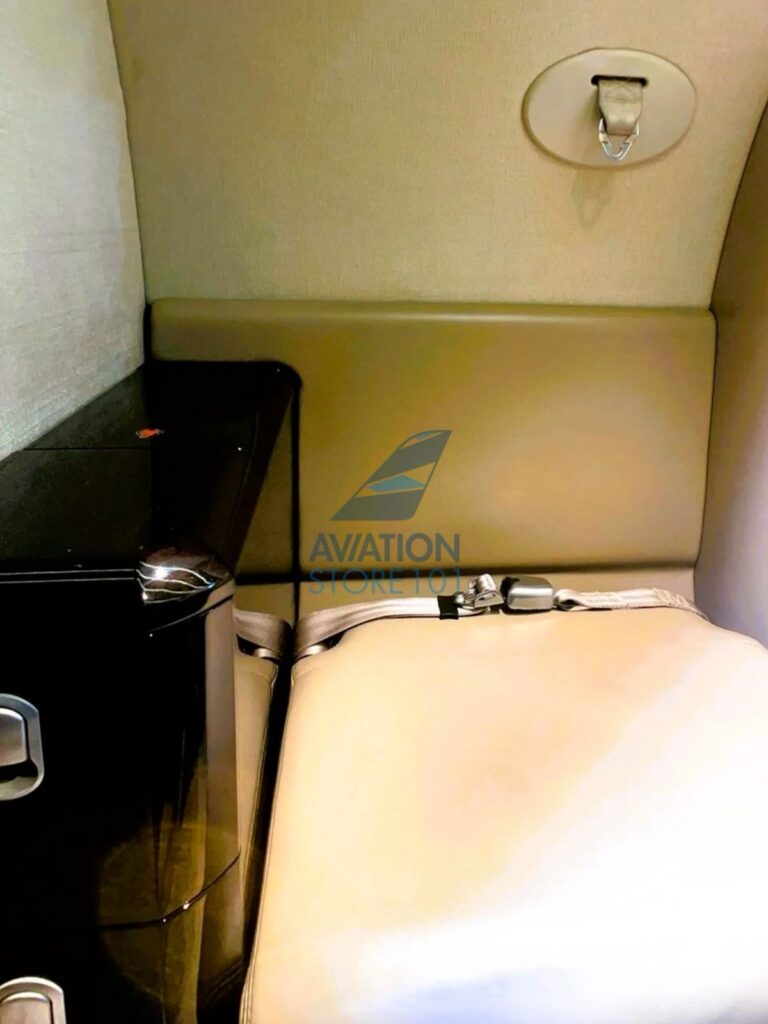

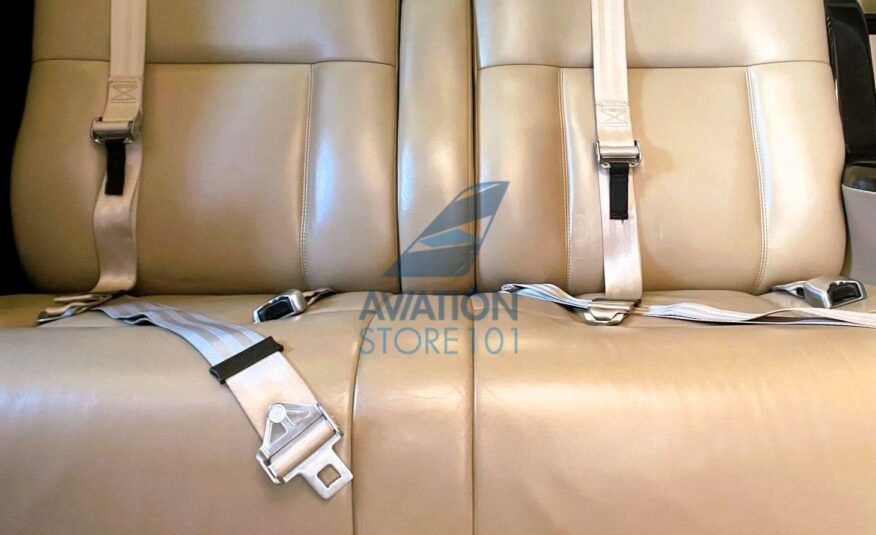

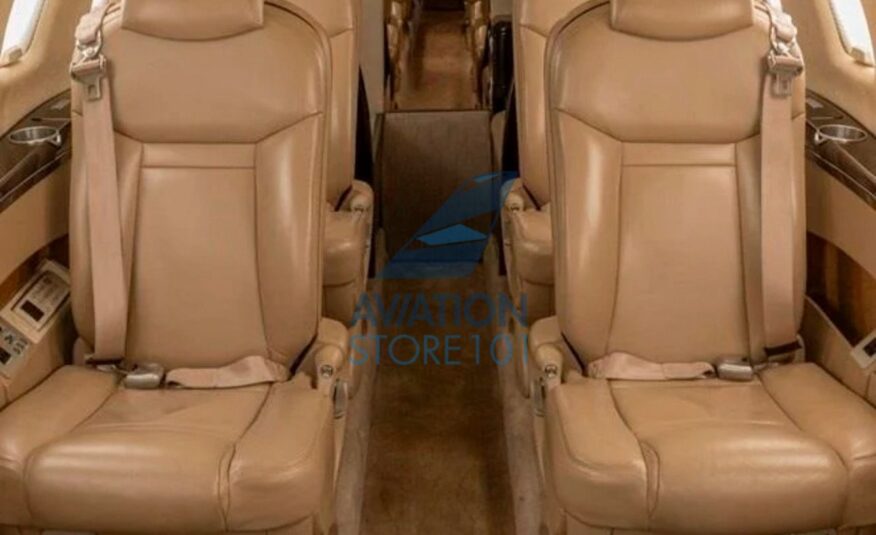

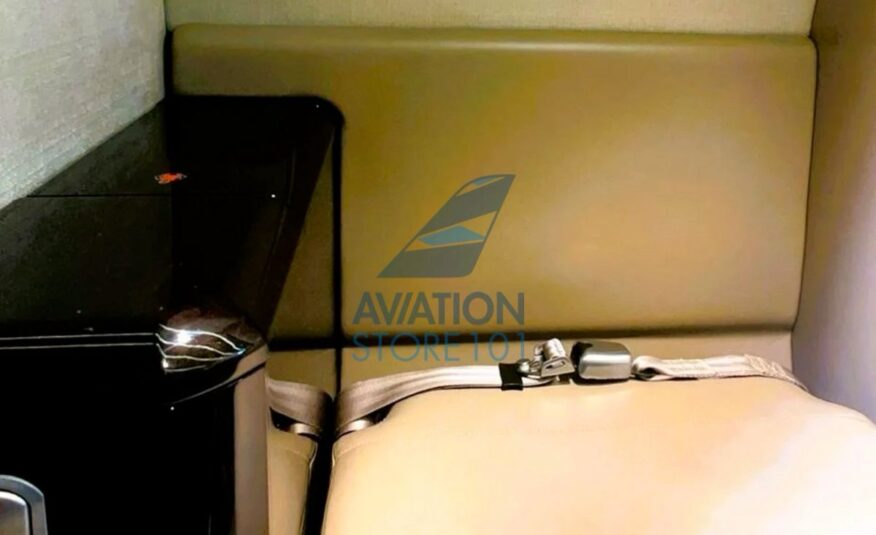

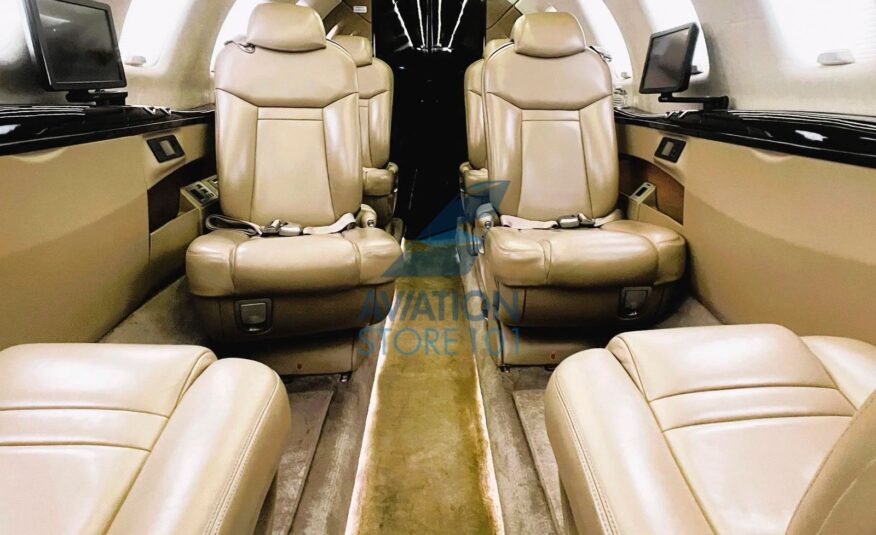

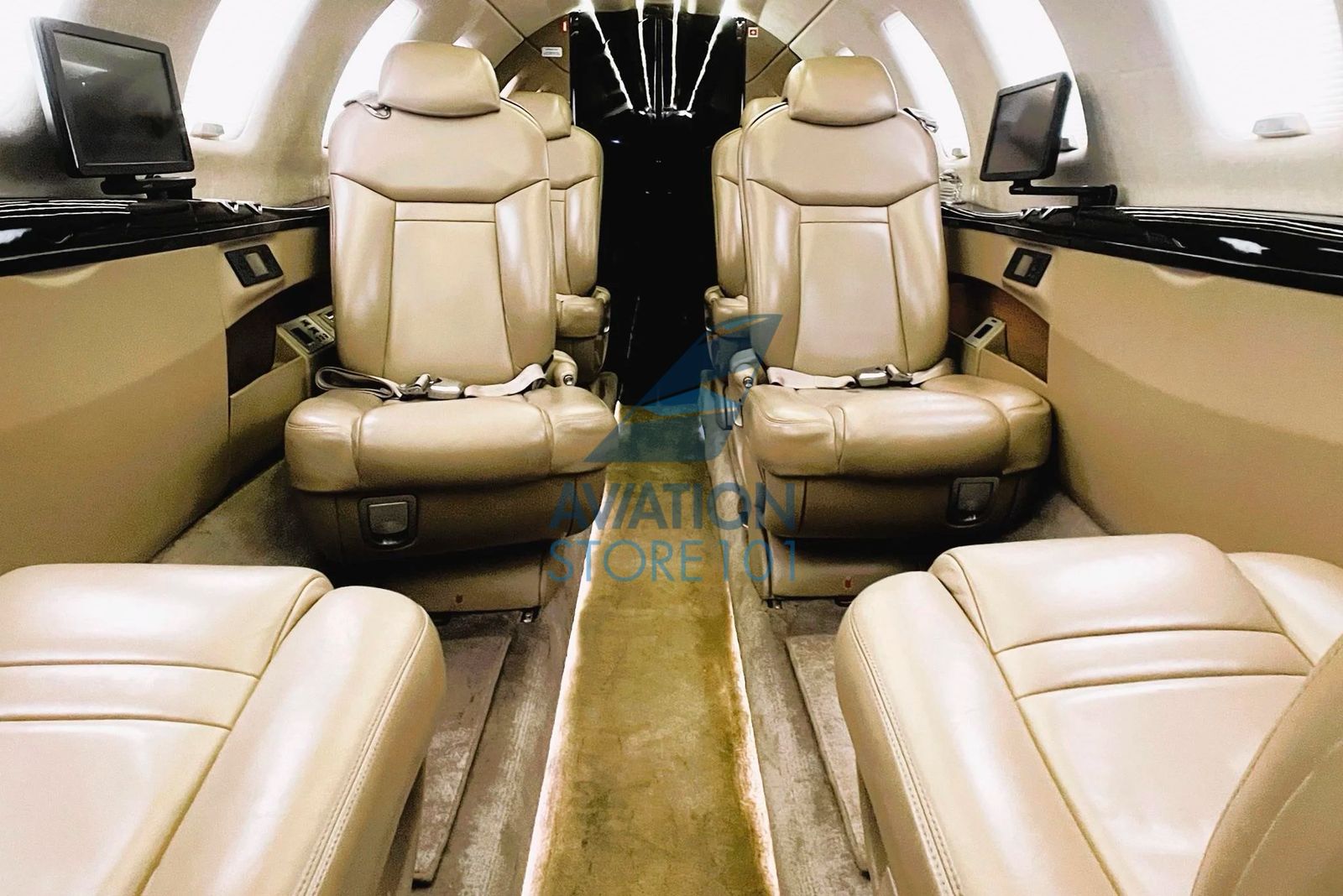

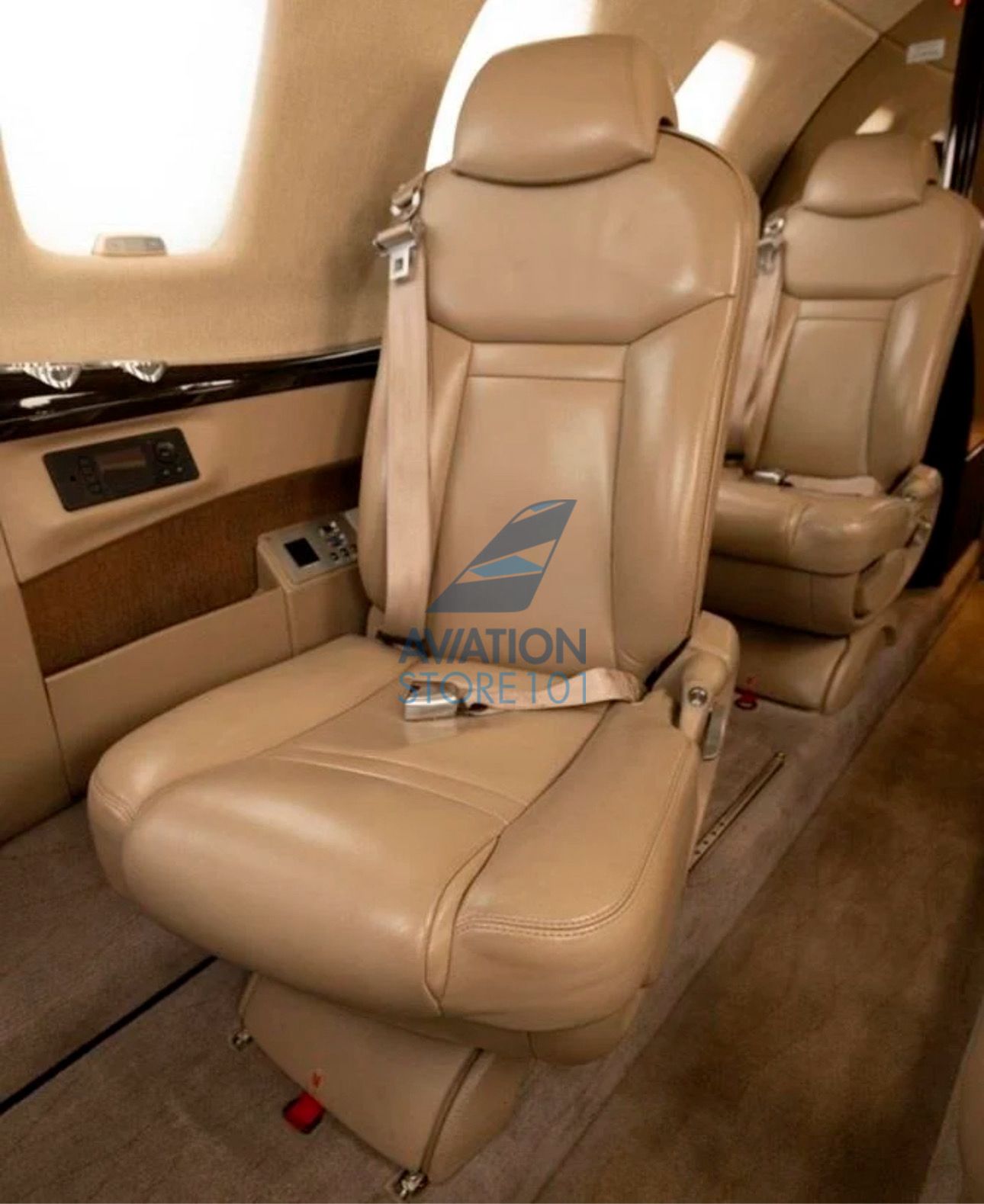

• Nine (9) Passenger Configuration has a four place club with a 2 Place Side-Facing Seat and Belted Lav.

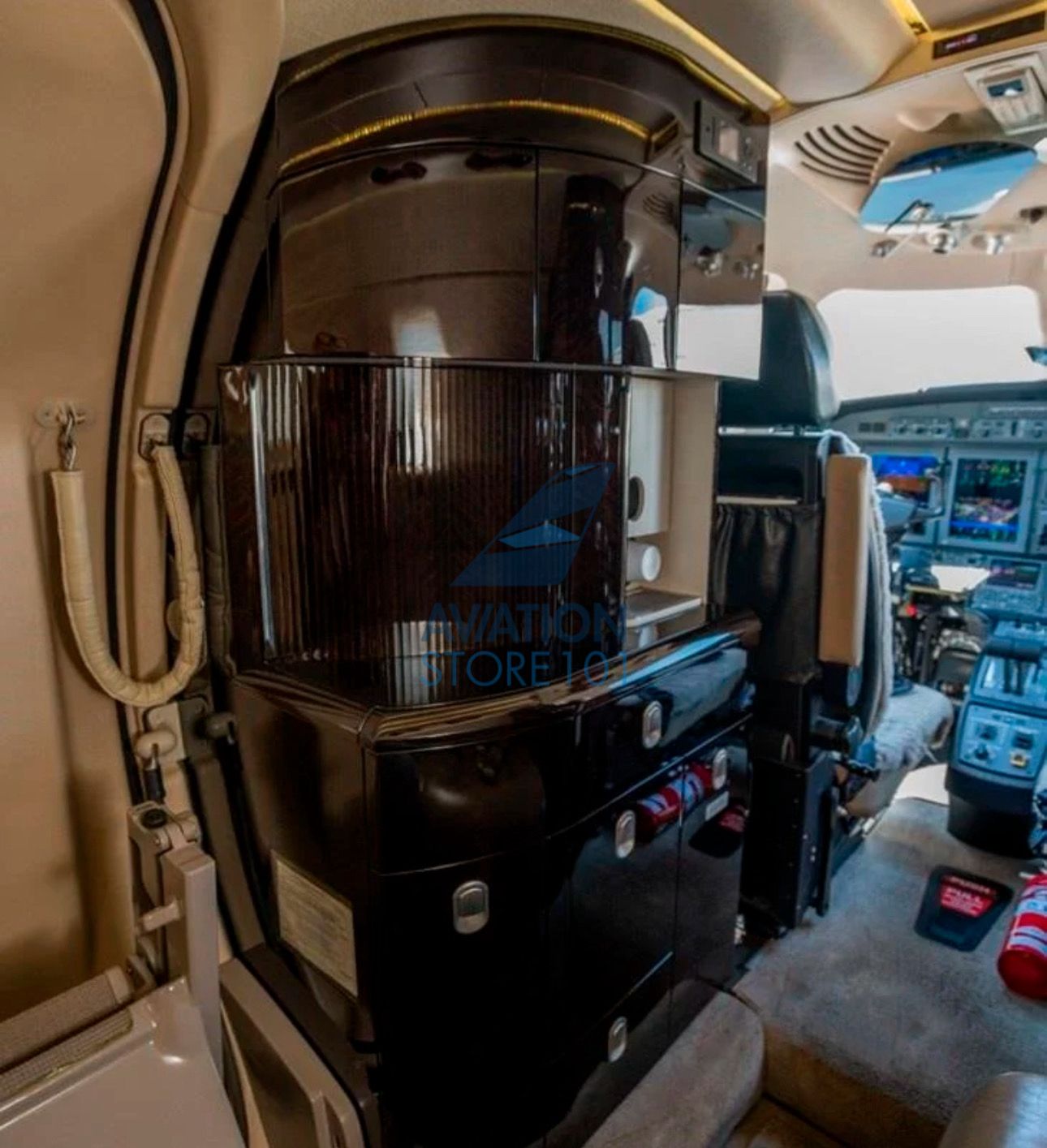

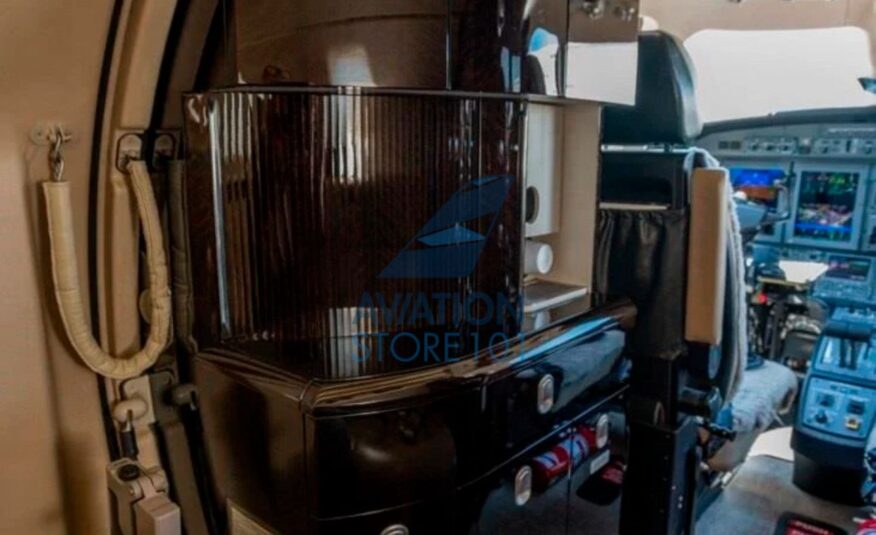

  LH forward Refreshment Center Galley and RH forward equipment/storage cabinet with high gloss veneer finish and Brushed Aluminum Hardware.
• WIFI – ATG 4000
• AXXESS II Iridium Satcom Telephone, 110 Volt Universal AC Outlet, Auxiliary Input Interface Consisting of a Data Port and RCA Jacks for Loal Input of Portable Personal Media Devices.
• Crew Seats covered in Sheepskin.

A aeronave acima é de terceiros, os dados estão sujeitos a verificação.

Exterior

• Exterior Height: 15 ft 5 in
• Wing Span: 50 ft 10 in
• Length: 53 ft 4 in

Interior

• Cabin Height: 4 ft 9 In
• Cabin Width: 4 ft 10 In
• Cabin Length: 17 ft 4 In
• Cabin Volume: 311 cu ft
• Internal Baggage: 77 cu ft

Occupancy

• Crew: 1
• Passengers: 9
• Operating Weights
• Max T/O Weight: 17110 Lb
• Max Landing Weight: 15660 Lb
• Operating Weight: 10280 Lb
• Empty Weight: 12500 Lb
• Fuel Capacity: 5828 lbs Lb
• Payload Useful: 6970 Lb
• Payload W/Full Fuel: 1122 Lb
• Max Payload: 2220 Lb

Range

• Max Range: 2165 nm
• Service Ceiling: 45000 ft

Distances

• Takeoff Distance: 3410 ft
• Landing Distance: 2940 ft

Performance

• Rate of Climb: 3854 fpm
• Max Speed: 451 kts
• Economy Cruise: 391 kts
• Avionics: Rockwell Collins Pro Line 21
• 2012 List Price: $9,410,000

Power Plant

• Engines: 2
• Engine Mfg: Williams
