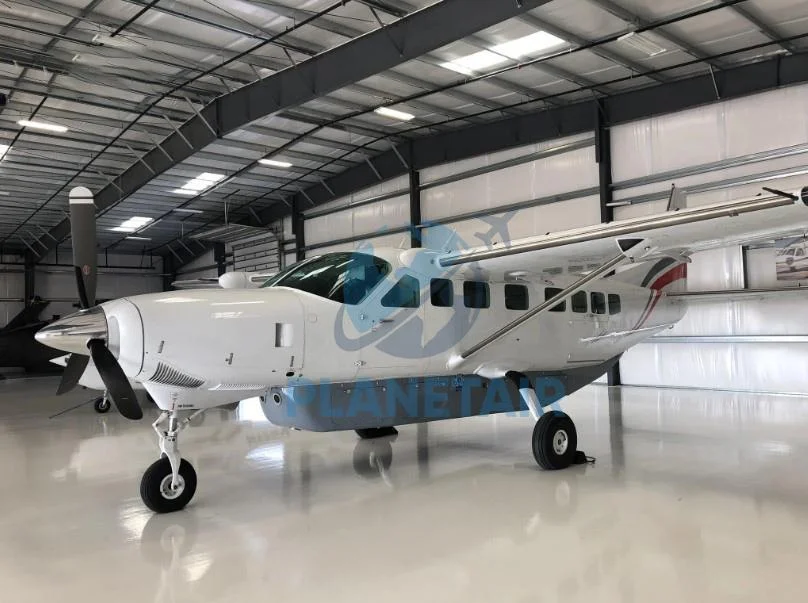

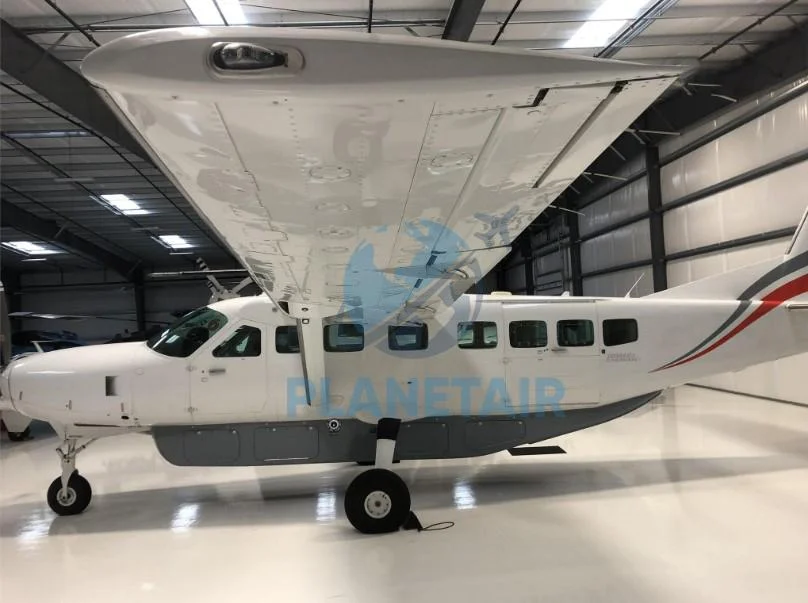

Cessna Grand Caravan EX – Ano 2013 – 1765 Horas Totais
Preço sob consulta
Status
Vendida
Ano
2013
Assentos
10
Condição
Usado
Localização
Horas totais
1765 H
Ano
2013
Horas totais
1765 H
Assentos
10
Condição
Usado
Localização
Visão geral
Especificações
Visão geral
- Ex Works
Valor de venda + impostos para nacionalização
Engine:
- PT6A-140 867 HP 1765.0 HOURS
- TBO: 4000h
Equipamentos:

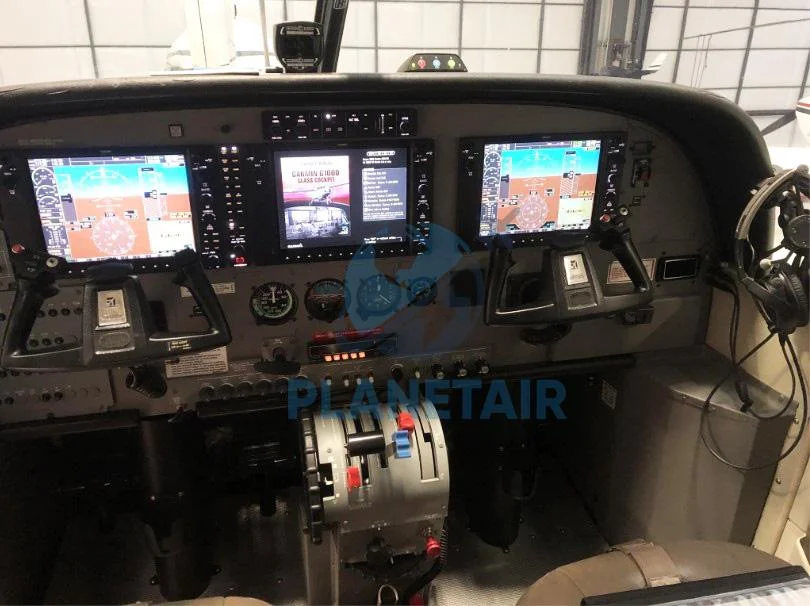

- GARMIN G1000
- KING KR87 ADF
- DUAL COMS
- GARMIN TCAS
- DUAL NAVS
- GARMIN GFC 700 AUTOPILOT/FLTDIRECT
- HF RADIO PROVISIONS
- ARTEX 406 ELT
- GARMIN TAWS
- GARMIN GWX 68 DIGITAL RADAR
- BENDIX/KING KN63 DME
- BENDIX/KING KRA 405B RADAR ALTIMETER
Equipamentos Adicionais:
- TKS KNOWN ICE SYSTEM
- CARGO POD
- COPILOT INSTRUMENTS
- DIGITAL CLOCK
- FLIGHT HOUR RECORDER
- EXTENDED NOSE FORK
- OVERSIZE MAIN TIRES
- 12 V DC POWER OUTLET
- RUDEDER GUST LOCK
- DUAL MASTER SWITCHES
- LED INTERIOR /EXTERIOR LIGHTING
- CABIN PA SYSTEM
- AIR CONDITIONING
- 200 AMP STARTER GENERATOR
- CAMERA MOUNT (INSIDE CARGO POD)
Interior:

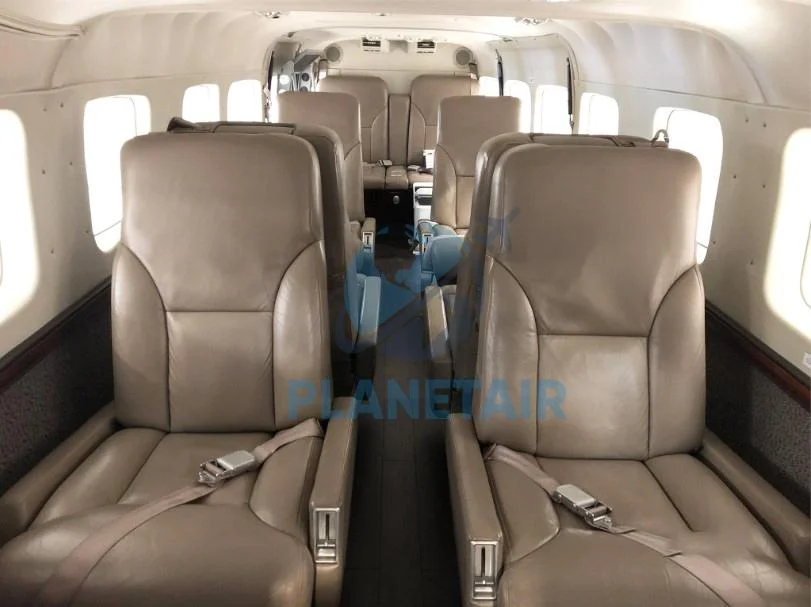

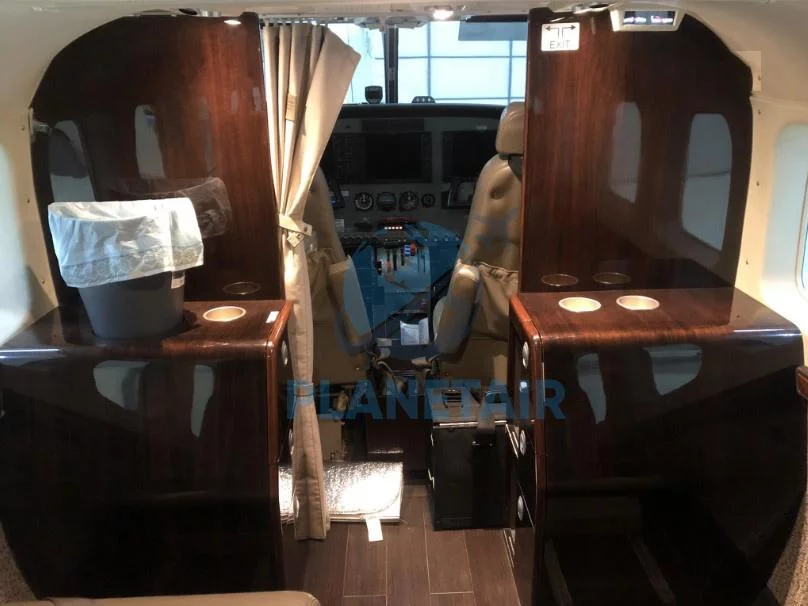

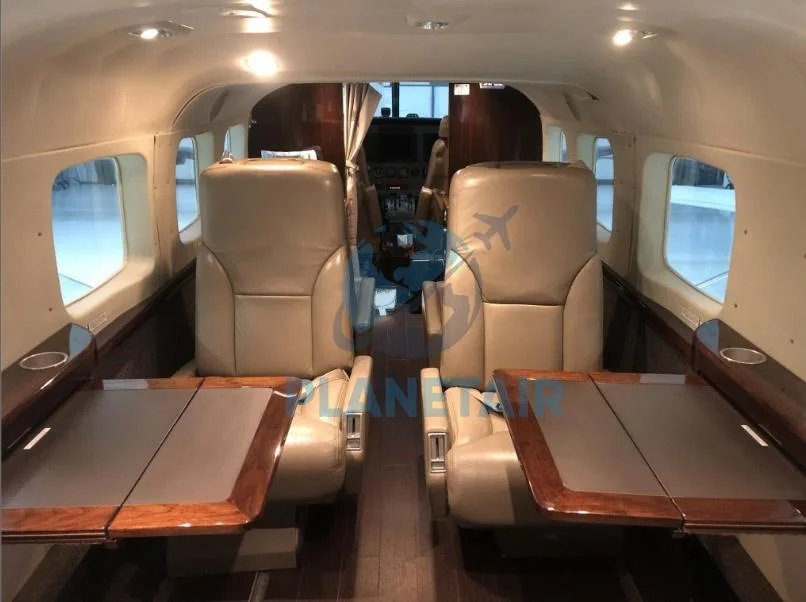

- OASIS INTERIOR 10 PLACE INCLUDING CREW, DUAL AFT DIVAN AND BELTED LAV, FORWARD CLUB SEATING, FORWARD CABINETS, INTERCOM FOR CREW AND 8 PASSENGERS, EXECUTIVE TABLES, 110 VOLT OUTLETS.
A aeronave acima é de terceiros, os dados estão sujeitos a verificação.
Especificações
DIMENSIONS
| Length | 41 ft 7 in (12.7 m) |
| Height | 15 ft 6 in (4.7 m) |
| Wingspan | 52 ft 1 in (15.9 m) |
| Wing Area | 279 sq ft (25.96 sq m) |
| Wheelbase | 13 ft 4 in (4.05 m) |
| Tread | 11 ft 8 in (3.56 m) |
CABIN INTERIOR
| Height | 54 in (1.37 m) |
| Width | 64 in (1.63 m) |
| Length | 21 ft 4 in (6.50 m) |
| Maximum Occupants | 10 – 14 |
BAGGAGE CAPACITY
| Weight | 1,410 lb (640 kg) |
| Volume | 143 cu ft (4.05 cu m) |
WEIGHTS
| Maximum Ramp Weight | 8,842 lb (4,011 kg) |
| Maximum Takeoff Weight | 8,807 lb (3,995 kg) |
| Maximum Landing Weight | 8,500 lb (3,856 kg) |
| Usable Fuel Weight | 2,246 lb (1,019 kg) |
| Usable Fuel Volume | 335 gal (1,269 l) |
| Basic Empty Weight | 5,310 lb (2,409 kg) |
| Useful Load | 3,532 lb (1,602 kg) |
| Maximum Payload | 3,190 lb (1,447 kg) |
| Full Fuel Payload | 1,286 lb (583 kg) |
PERFORMANCE
| Maximum Cruise Speed | 185 ktas (343 km/h) |
| Maximum Range | 912 nm (1,689 km) |
| Takeoff Distance | 2,160 ft (658 m) |
| Takeoff Ground Roll | 1,399 ft (426 m) |
| Landing Distance | 1,836 ft (560 m) |
| Landing Ground Roll | 1,004 ft (306 m) |
| Maximum Operating Altitude | 25,000 ft (7,620 m) |
| Maximum Climb Rate | 1,275 fpm (389 mpm) |
POWERPLANT
| Manufacturer | Pratt & Whitney Canada |
| Model | PT6A-140 |
| Power Rating | 867 shp (647 kw) |
| Propeller Manufacturer | McCauley |
| Description | 4 blade aluminum, constant speed, full feathering |
- Ex Works
Valor de venda + impostos para nacionalização
Engine:
- PT6A-140 867 HP 1765.0 HOURS
- TBO: 4000h
Equipamentos:
- GARMIN G1000
- KING KR87 ADF
- DUAL COMS
- GARMIN TCAS
- DUAL NAVS
- GARMIN GFC 700 AUTOPILOT/FLTDIRECT
- HF RADIO PROVISIONS
- ARTEX 406 ELT
- GARMIN TAWS
- GARMIN GWX 68 DIGITAL RADAR
- BENDIX/KING KN63 DME
- BENDIX/KING KRA 405B RADAR ALTIMETER
Equipamentos Adicionais:
- TKS KNOWN ICE SYSTEM
- CARGO POD
- COPILOT INSTRUMENTS
- DIGITAL CLOCK
- FLIGHT HOUR RECORDER
- EXTENDED NOSE FORK
- OVERSIZE MAIN TIRES
- 12 V DC POWER OUTLET
- RUDEDER GUST LOCK
- DUAL MASTER SWITCHES
- LED INTERIOR /EXTERIOR LIGHTING
- CABIN PA SYSTEM
- AIR CONDITIONING
- 200 AMP STARTER GENERATOR
- CAMERA MOUNT (INSIDE CARGO POD)
Interior:
- OASIS INTERIOR 10 PLACE INCLUDING CREW, DUAL AFT DIVAN AND BELTED LAV, FORWARD CLUB SEATING, FORWARD CABINETS, INTERCOM FOR CREW AND 8 PASSENGERS, EXECUTIVE TABLES, 110 VOLT OUTLETS.
A aeronave acima é de terceiros, os dados estão sujeitos a verificação.
DIMENSIONS
| Length | 41 ft 7 in (12.7 m) |
| Height | 15 ft 6 in (4.7 m) |
| Wingspan | 52 ft 1 in (15.9 m) |
| Wing Area | 279 sq ft (25.96 sq m) |
| Wheelbase | 13 ft 4 in (4.05 m) |
| Tread | 11 ft 8 in (3.56 m) |
CABIN INTERIOR
| Height | 54 in (1.37 m) |
| Width | 64 in (1.63 m) |
| Length | 21 ft 4 in (6.50 m) |
| Maximum Occupants | 10 – 14 |
BAGGAGE CAPACITY
| Weight | 1,410 lb (640 kg) |
| Volume | 143 cu ft (4.05 cu m) |
WEIGHTS
| Maximum Ramp Weight | 8,842 lb (4,011 kg) |
| Maximum Takeoff Weight | 8,807 lb (3,995 kg) |
| Maximum Landing Weight | 8,500 lb (3,856 kg) |
| Usable Fuel Weight | 2,246 lb (1,019 kg) |
| Usable Fuel Volume | 335 gal (1,269 l) |
| Basic Empty Weight | 5,310 lb (2,409 kg) |
| Useful Load | 3,532 lb (1,602 kg) |
| Maximum Payload | 3,190 lb (1,447 kg) |
| Full Fuel Payload | 1,286 lb (583 kg) |
PERFORMANCE
| Maximum Cruise Speed | 185 ktas (343 km/h) |
| Maximum Range | 912 nm (1,689 km) |
| Takeoff Distance | 2,160 ft (658 m) |
| Takeoff Ground Roll | 1,399 ft (426 m) |
| Landing Distance | 1,836 ft (560 m) |
| Landing Ground Roll | 1,004 ft (306 m) |
| Maximum Operating Altitude | 25,000 ft (7,620 m) |
| Maximum Climb Rate | 1,275 fpm (389 mpm) |
POWERPLANT
| Manufacturer | Pratt & Whitney Canada |
| Model | PT6A-140 |
| Power Rating | 867 shp (647 kw) |
| Propeller Manufacturer | McCauley |
| Description | 4 blade aluminum, constant speed, full feathering |
