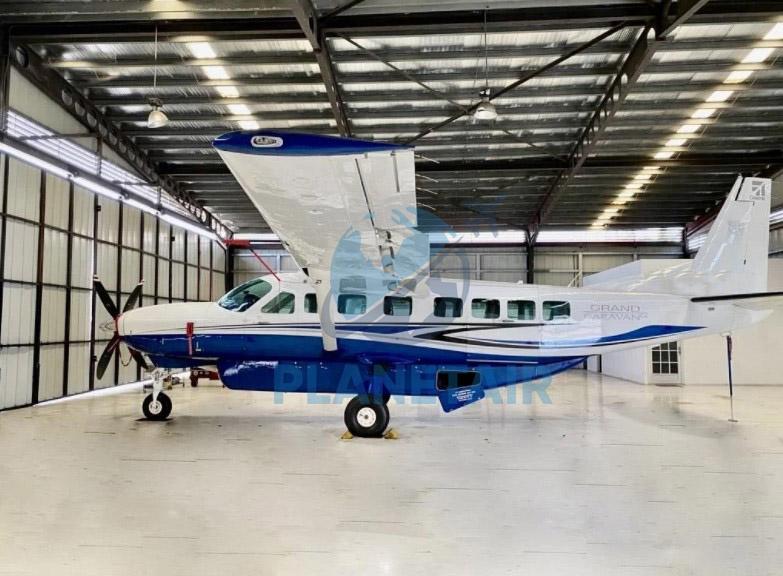

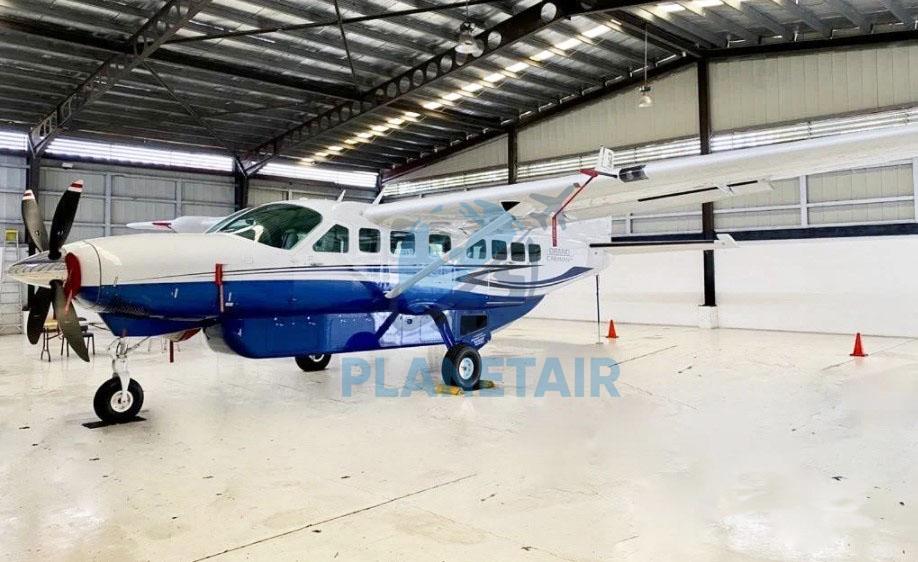

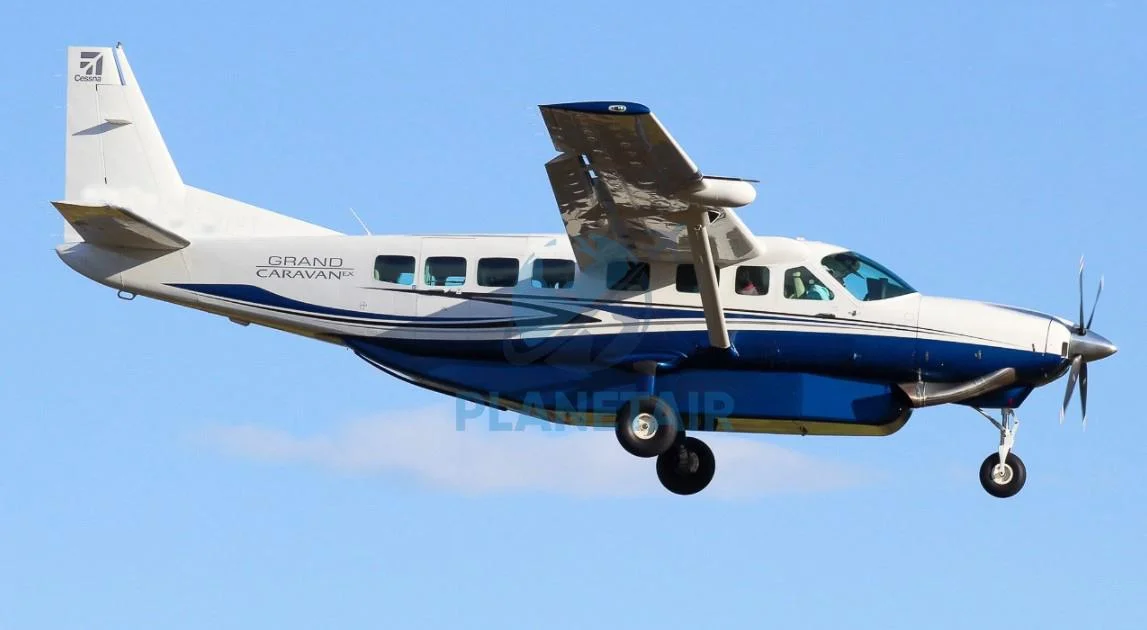

Cessna Grand Caravan EX – Ano 2015 – 570 Horas Totais
Avião turbo hélice
REF:
PL5191
Preço sob consulta
Status
Vendida
Fabricante
Cessna Aircraft
Modelo
Grand Caravan - 208B
Motor
PT6A-140
Combustível
Jet A - Querosene
Ano
2015
Horas totais
570
Assentos
13
Condição
Usado
Localização
Brasil
Ano
2015
Horas totais
570
H
Assentos
13
Condição
Usado
Localização
Brasil
Galeria do PDF (Não visível na página normal)
Visão geral
Especificações
Visão geral
- Ex Works
Valor de venda + impostos para nacionalização
• No Damage History
• ProParts prepaid until 2/25/21 or 734 Hrs
• Garmin Avionics Warranty until 2/25/21
• Engine Warranty extended until 2/25/21 or 2500 Hrs
Engine:

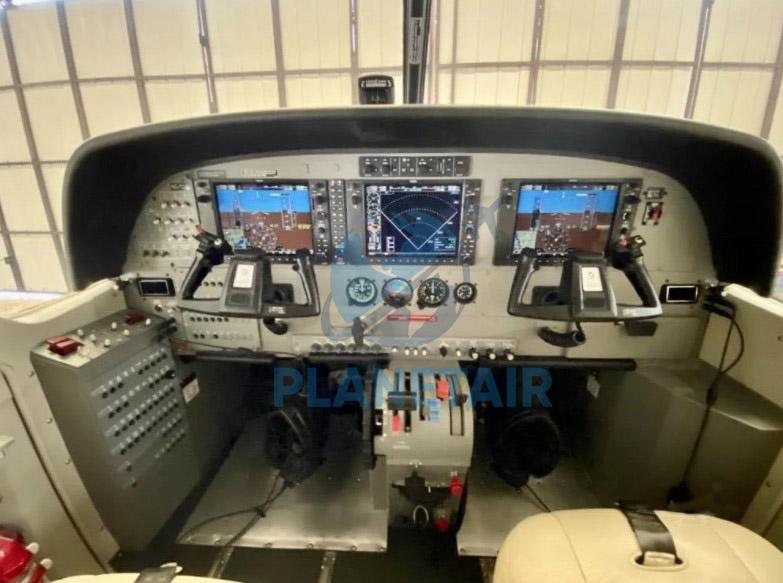

- Garmin G1000 All Glass Avionics System includes:
• Synthetic Vision Technology (SVT)
• King KN-63 DME
• GTX 33 Mode S Transponder
• GDU1040 Pilot & Co-Pilot Primary Flight Display (PFD)
• GMA 1347 Single Audio System with Integrated Marker Beacon Receiver
• GDU 1040A Multi-Function Display (MFD)
• GDC 74A Dual Air Data Computer (ADC)
• GEA 71 Engine/Airframe Unit
• GIA 63W Dual Integrated Avionics Unit (Includes Comm, Nav, GPS)
• GRS 77 Dual Attitude and Heading Reference System (AHRS)
• GMC 710 Autopilot Mode Controller
• GSA 80/81 Servo Actuators with GSM 86 Servo Mounts
• Garmin Relative Terrain/Obstacles
• Garmin Flight Charts Capable
• Garmin Safe Taxi Capable
• Switch, Avionics Power (Two) (On-Off)
• Avionics Cooling, (2) cowl deck fans and (3) display fans
• PA System with Aft Cabin Speakers
• KR-87 ADF Displayed on PFD w/ Stand Alone Control
Equipamentos Adicionais:
- $450K+ in Options
- ADS-B Out (to be installed before delivery)
- 13 Place Commuter Interior Configuration ($79K)
- Garmin GWX 68 – 4 Color Digital Weather Radar ($30K)
- KTA 870 Traffic Advisory System ($28K)
- TAWS-B Garmin ($15K)
- C 406-N 3 Frequency ELT ($14K)
- 300 AMP Starter/Generator ($7K)
- A/C Cabin System ($47K)
- Complete 17 Port Oxygen System ($21K)
- 29” Tires ($2K)
- Cargo Pod With Exhaust Deflector ($86K)
- Synthetic Vision Technology (SVT) ($28K)
- L-3 Communications Stormscope Model WX-500 ($12K)
- Jeppesen Chart View (Exchange for Garmin Flight Charts) ($6K)
- 4-blade Propeller Upgrade ($75K)
- Wing Tips Painted Blue
- Teflon Coating for Cargo Pod
- 12V Power Outlets in Cabin (2)

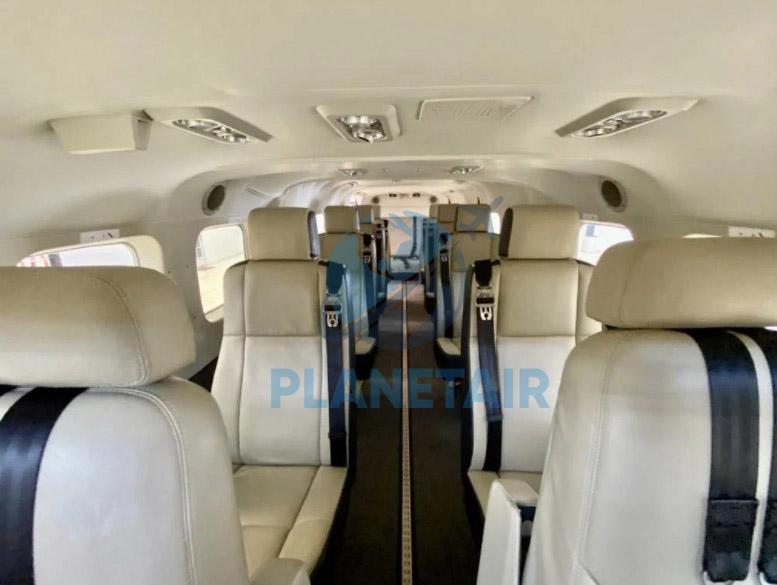

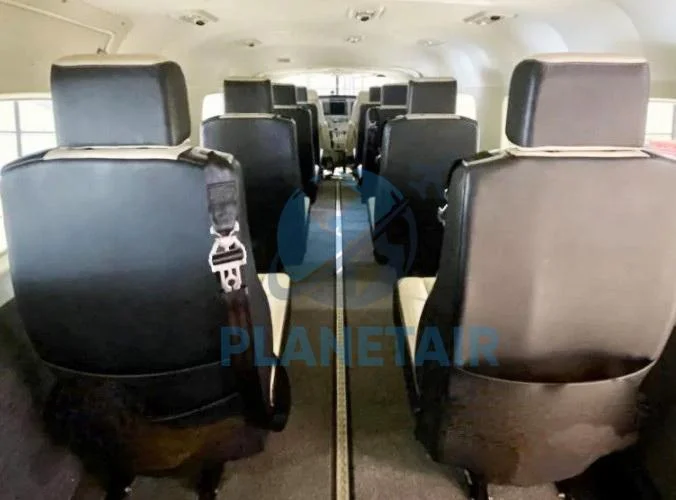

Interior:
- Canyon Group Interior
- 13 Place Commuter Configuration
- 2 front pilots seats, 8 individual passenger seats looking
forward, and a 3-place aft divan facing forward - 12V Power Outlets (2)
- Air Conditioning cabin system
- Complete 17 Port Oxygen System
A aeronave acima é de terceiros, os dados estão sujeitos a verificação.
Especificações
DIMENSIONS
| Length | 41 ft 7 in (12.7 m) |
| Height | 15 ft 6 in (4.7 m) |
| Wingspan | 52 ft 1 in (15.9 m) |
| Wing Area | 279 sq ft (25.96 sq m) |
| Wheelbase | 13 ft 4 in (4.05 m) |
| Tread | 11 ft 8 in (3.56 m) |
CABIN INTERIOR
| Height | 54 in (1.37 m) |
| Width | 64 in (1.63 m) |
| Length | 21 ft 4 in (6.50 m) |
| Maximum Occupants | 10 – 14 |
BAGGAGE CAPACITY
| Weight | 1,410 lb (640 kg) |
| Volume | 143 cu ft (4.05 cu m) |
WEIGHTS
| Maximum Ramp Weight | 8,842 lb (4,011 kg) |
| Maximum Takeoff Weight | 8,807 lb (3,995 kg) |
| Maximum Landing Weight | 8,500 lb (3,856 kg) |
| Usable Fuel Weight | 2,246 lb (1,019 kg) |
| Usable Fuel Volume | 335 gal (1,269 l) |
| Basic Empty Weight | 5,310 lb (2,409 kg) |
| Useful Load | 3,532 lb (1,602 kg) |
| Maximum Payload | 3,190 lb (1,447 kg) |
| Full Fuel Payload | 1,286 lb (583 kg) |
PERFORMANCE
| Maximum Cruise Speed | 185 ktas (343 km/h) |
| Maximum Range | 912 nm (1,689 km) |
| Takeoff Distance | 2,160 ft (658 m) |
| Takeoff Ground Roll | 1,399 ft (426 m) |
| Landing Distance | 1,836 ft (560 m) |
| Landing Ground Roll | 1,004 ft (306 m) |
| Maximum Operating Altitude | 25,000 ft (7,620 m) |
| Maximum Climb Rate | 1,275 fpm (389 mpm) |
POWERPLANT
| Manufacturer | Pratt & Whitney Canada |
| Model | PT6A-140 |
| Power Rating | 867 shp (647 kw) |
| Propeller Manufacturer | McCauley |
| Description | 4 blade aluminum, constant speed, full feathering |
- Ex Works
Valor de venda + impostos para nacionalização
• No Damage History
• ProParts prepaid until 2/25/21 or 734 Hrs
• Garmin Avionics Warranty until 2/25/21
• Engine Warranty extended until 2/25/21 or 2500 Hrs
Engine:
- Garmin G1000 All Glass Avionics System includes:
• Synthetic Vision Technology (SVT)
• King KN-63 DME
• GTX 33 Mode S Transponder
• GDU1040 Pilot & Co-Pilot Primary Flight Display (PFD)
• GMA 1347 Single Audio System with Integrated Marker Beacon Receiver
• GDU 1040A Multi-Function Display (MFD)
• GDC 74A Dual Air Data Computer (ADC)
• GEA 71 Engine/Airframe Unit
• GIA 63W Dual Integrated Avionics Unit (Includes Comm, Nav, GPS)
• GRS 77 Dual Attitude and Heading Reference System (AHRS)
• GMC 710 Autopilot Mode Controller
• GSA 80/81 Servo Actuators with GSM 86 Servo Mounts
• Garmin Relative Terrain/Obstacles
• Garmin Flight Charts Capable
• Garmin Safe Taxi Capable
• Switch, Avionics Power (Two) (On-Off)
• Avionics Cooling, (2) cowl deck fans and (3) display fans
• PA System with Aft Cabin Speakers
• KR-87 ADF Displayed on PFD w/ Stand Alone Control
Equipamentos Adicionais:
- $450K+ in Options
- ADS-B Out (to be installed before delivery)
- 13 Place Commuter Interior Configuration ($79K)
- Garmin GWX 68 – 4 Color Digital Weather Radar ($30K)
- KTA 870 Traffic Advisory System ($28K)
- TAWS-B Garmin ($15K)
- C 406-N 3 Frequency ELT ($14K)
- 300 AMP Starter/Generator ($7K)
- A/C Cabin System ($47K)
- Complete 17 Port Oxygen System ($21K)
- 29” Tires ($2K)
- Cargo Pod With Exhaust Deflector ($86K)
- Synthetic Vision Technology (SVT) ($28K)
- L-3 Communications Stormscope Model WX-500 ($12K)
- Jeppesen Chart View (Exchange for Garmin Flight Charts) ($6K)
- 4-blade Propeller Upgrade ($75K)
- Wing Tips Painted Blue
- Teflon Coating for Cargo Pod
- 12V Power Outlets in Cabin (2)
Interior:
- Canyon Group Interior
- 13 Place Commuter Configuration
- 2 front pilots seats, 8 individual passenger seats looking
forward, and a 3-place aft divan facing forward - 12V Power Outlets (2)
- Air Conditioning cabin system
- Complete 17 Port Oxygen System
A aeronave acima é de terceiros, os dados estão sujeitos a verificação.
DIMENSIONS
| Length | 41 ft 7 in (12.7 m) |
| Height | 15 ft 6 in (4.7 m) |
| Wingspan | 52 ft 1 in (15.9 m) |
| Wing Area | 279 sq ft (25.96 sq m) |
| Wheelbase | 13 ft 4 in (4.05 m) |
| Tread | 11 ft 8 in (3.56 m) |
CABIN INTERIOR
| Height | 54 in (1.37 m) |
| Width | 64 in (1.63 m) |
| Length | 21 ft 4 in (6.50 m) |
| Maximum Occupants | 10 – 14 |
BAGGAGE CAPACITY
| Weight | 1,410 lb (640 kg) |
| Volume | 143 cu ft (4.05 cu m) |
WEIGHTS
| Maximum Ramp Weight | 8,842 lb (4,011 kg) |
| Maximum Takeoff Weight | 8,807 lb (3,995 kg) |
| Maximum Landing Weight | 8,500 lb (3,856 kg) |
| Usable Fuel Weight | 2,246 lb (1,019 kg) |
| Usable Fuel Volume | 335 gal (1,269 l) |
| Basic Empty Weight | 5,310 lb (2,409 kg) |
| Useful Load | 3,532 lb (1,602 kg) |
| Maximum Payload | 3,190 lb (1,447 kg) |
| Full Fuel Payload | 1,286 lb (583 kg) |
PERFORMANCE
| Maximum Cruise Speed | 185 ktas (343 km/h) |
| Maximum Range | 912 nm (1,689 km) |
| Takeoff Distance | 2,160 ft (658 m) |
| Takeoff Ground Roll | 1,399 ft (426 m) |
| Landing Distance | 1,836 ft (560 m) |
| Landing Ground Roll | 1,004 ft (306 m) |
| Maximum Operating Altitude | 25,000 ft (7,620 m) |
| Maximum Climb Rate | 1,275 fpm (389 mpm) |
POWERPLANT
| Manufacturer | Pratt & Whitney Canada |
| Model | PT6A-140 |
| Power Rating | 867 shp (647 kw) |
| Propeller Manufacturer | McCauley |
| Description | 4 blade aluminum, constant speed, full feathering |
