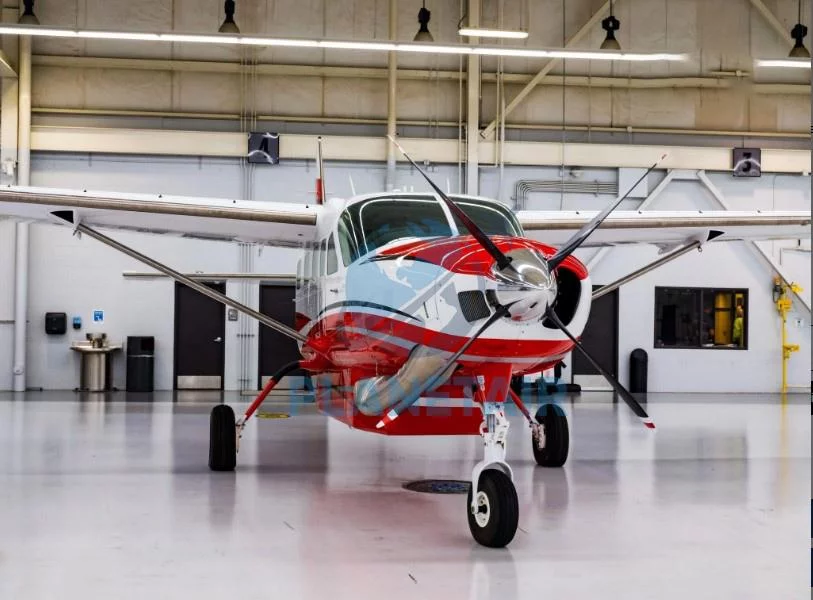

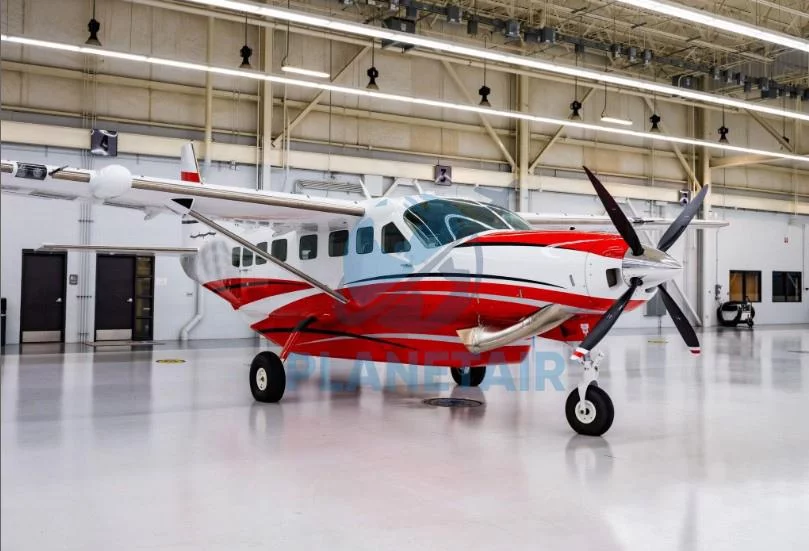

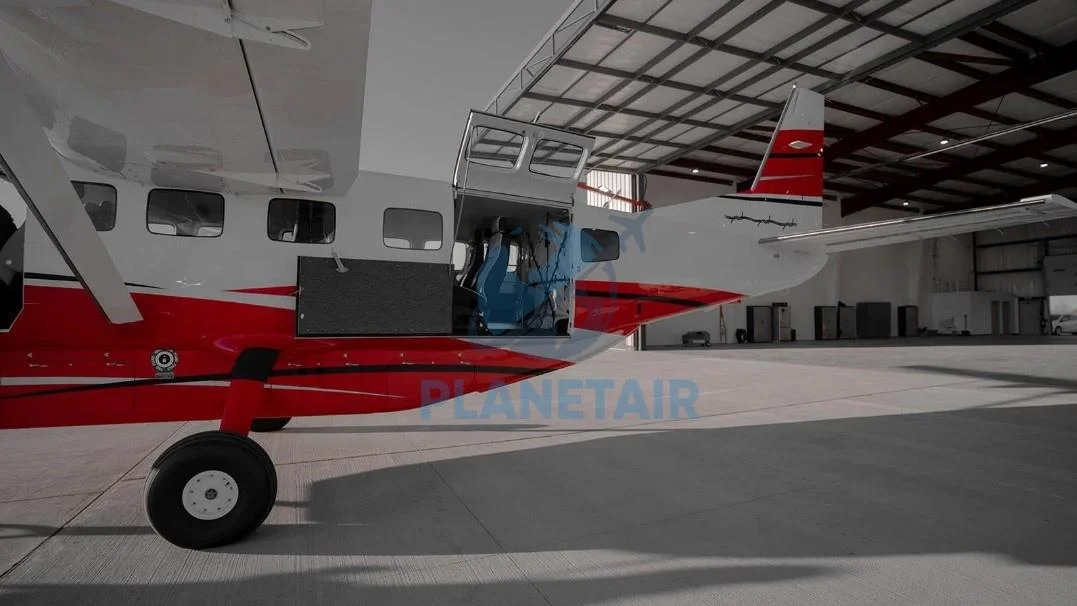

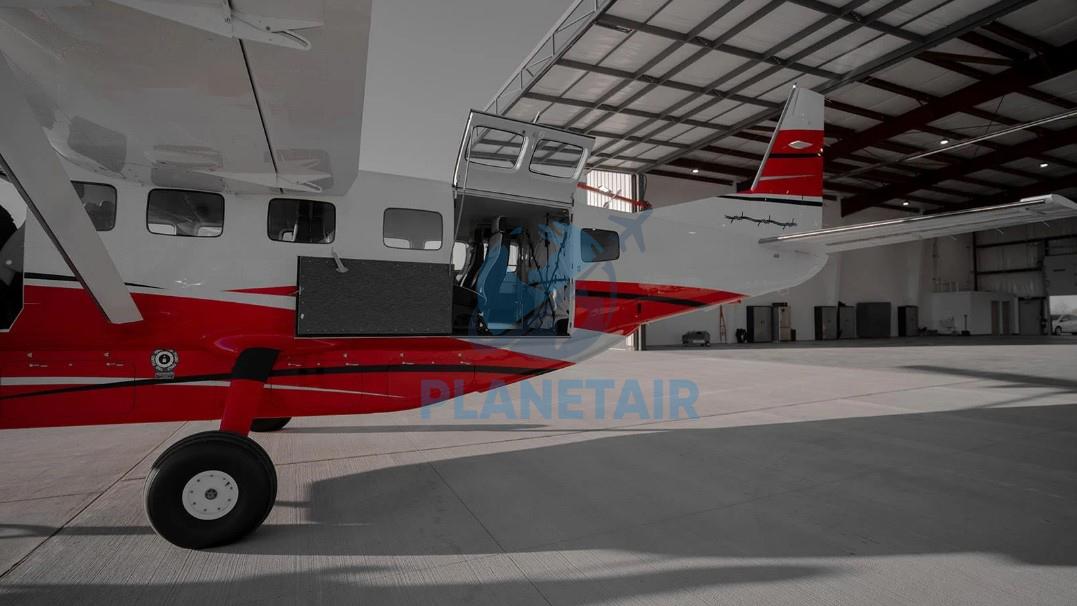

Cessna Grand Caravan EX – Ano 2020 – 35 Horas Totais
REF: PL5189
Preço sob consulta
Status
Vendida
Ano
2020
Assentos
Condição
Usado
Localização
Horas totais
35 H
Ano
2020
Horas totais
35 H
Assentos
Condição
Usado
Localização
Visão geral
Especificações
Visão geral
- Ex Works
Valor de venda + impostos para nacionalização

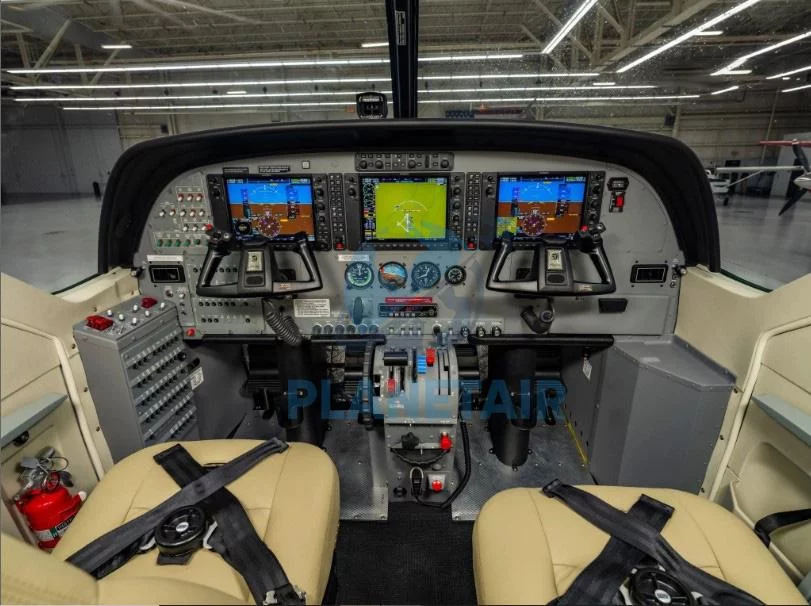

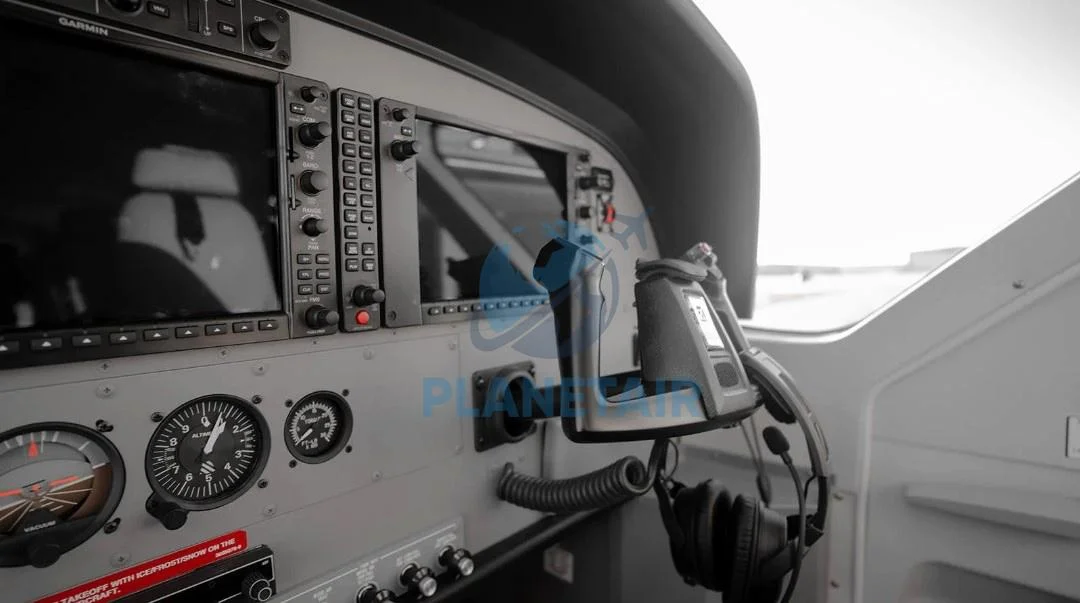

Equipamentos:
- GDU 1050A Pilot and Copilot Primary Flight Displays (PFD)
- GDU 1050A Multifunction Display (MFD)
- GDC 72 Dual Air Data Computer (ADC)
- GEA 71 Engine/Airframe Unit
- GRS 79 Dual Attitude and Heading Reference System (AHRS)
- GMA 1360D Dual Audio System with bluetooth capability and 3D audio
- GTX 335R ADS-B Out Transponder
- Garmin Relative Terrain/Obstacles
- Garmin FliteCharts
- Garmin SafeTaxi
- Integrated VFR Sectional Charts
- IFR High and Low Altitude Charts with Auto/Day/Night Modes
- KN-63 DME
- Flight Stream 510 for wireless database uploads and flight plan transfers
A aeronave acima é de terceiros, os dados estão sujeitos a verificação.
Especificações
DIMENSIONS
| Length | 41 ft 7 in (12.7 m) |
| Height | 15 ft 6 in (4.7 m) |
| Wingspan | 52 ft 1 in (15.9 m) |
| Wing Area | 279 sq ft (25.96 sq m) |
| Wheelbase | 13 ft 4 in (4.05 m) |
| Tread | 11 ft 8 in (3.56 m) |

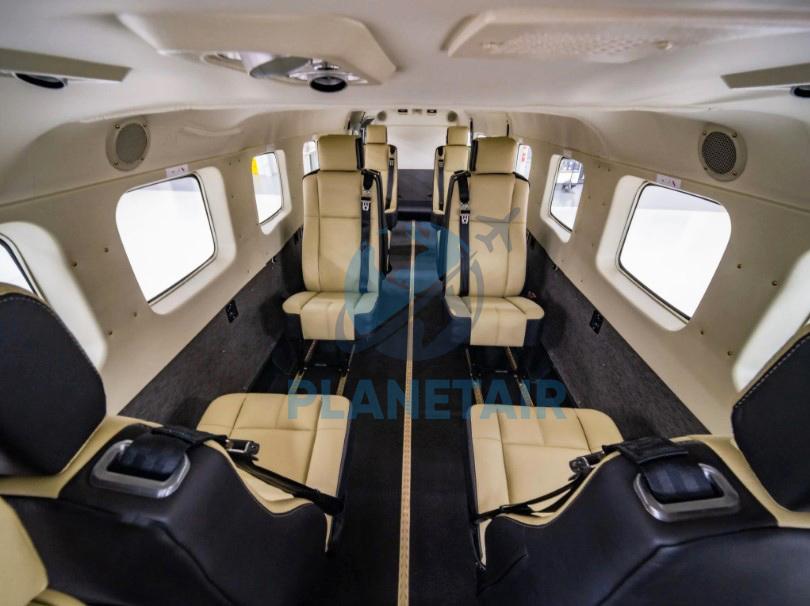

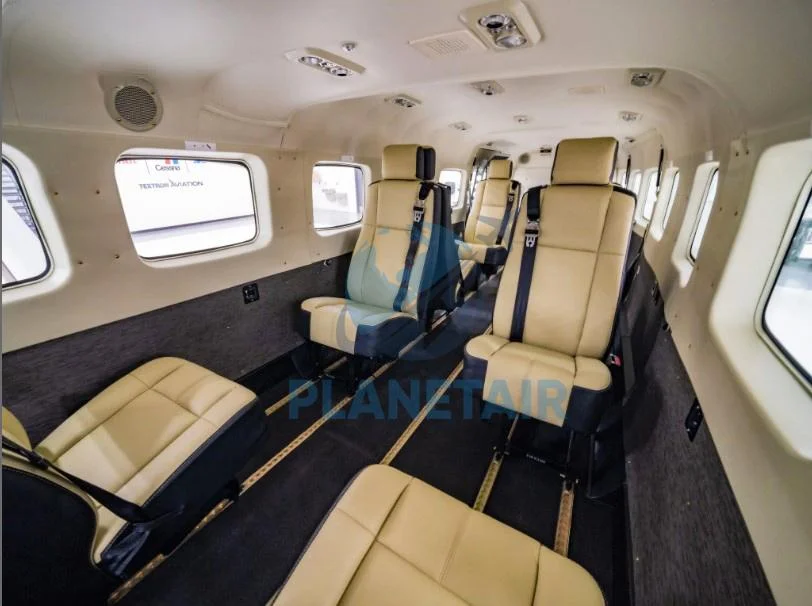

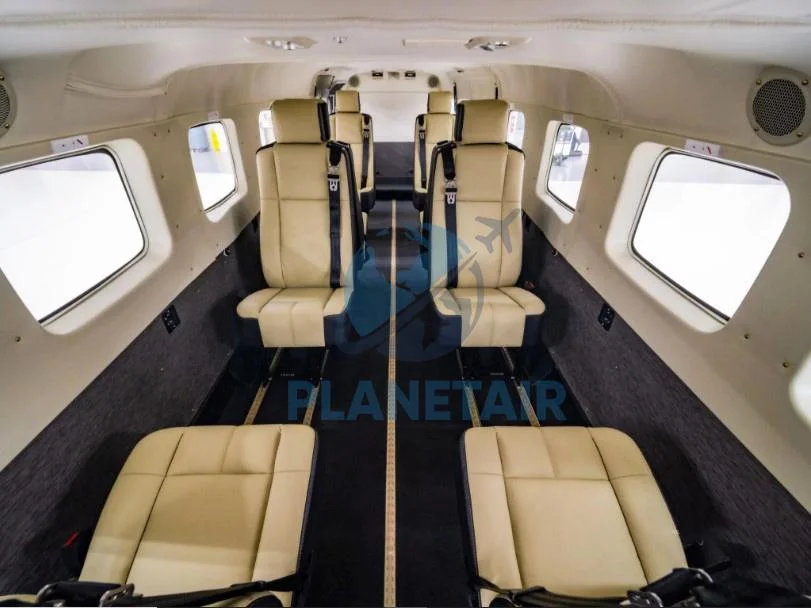

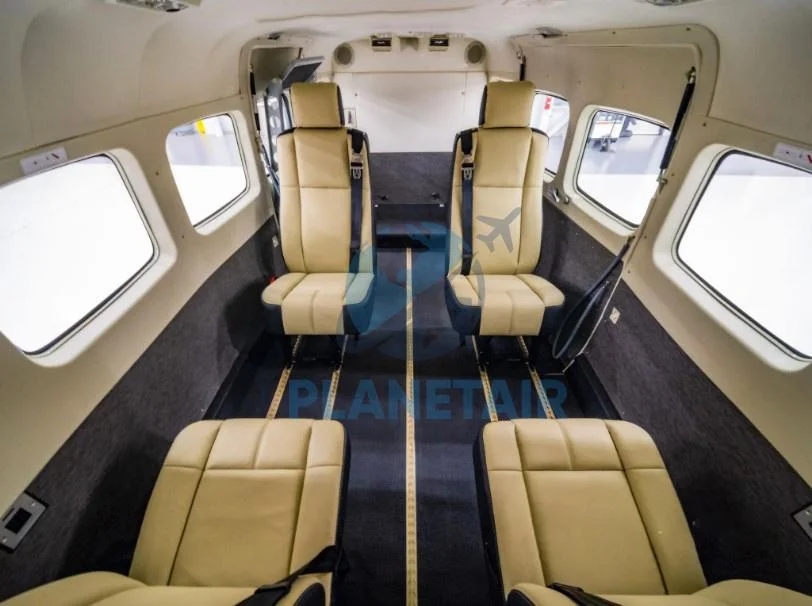

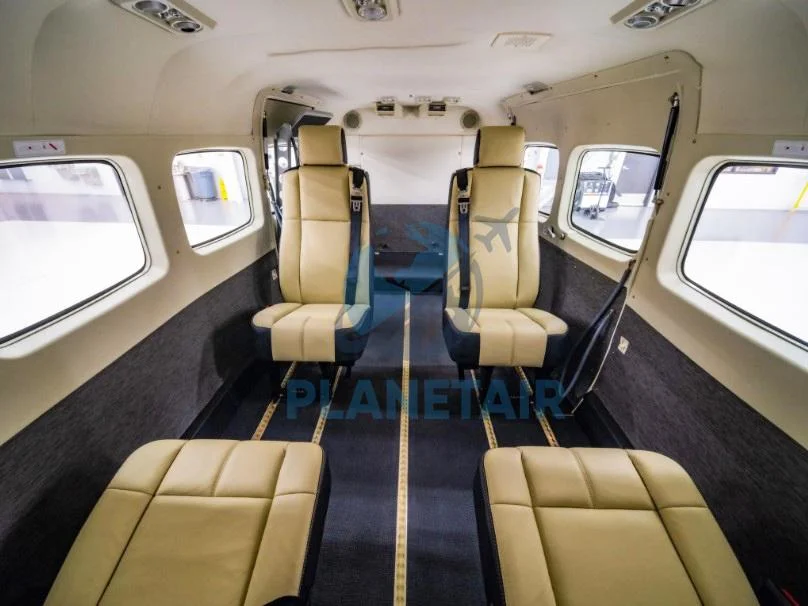

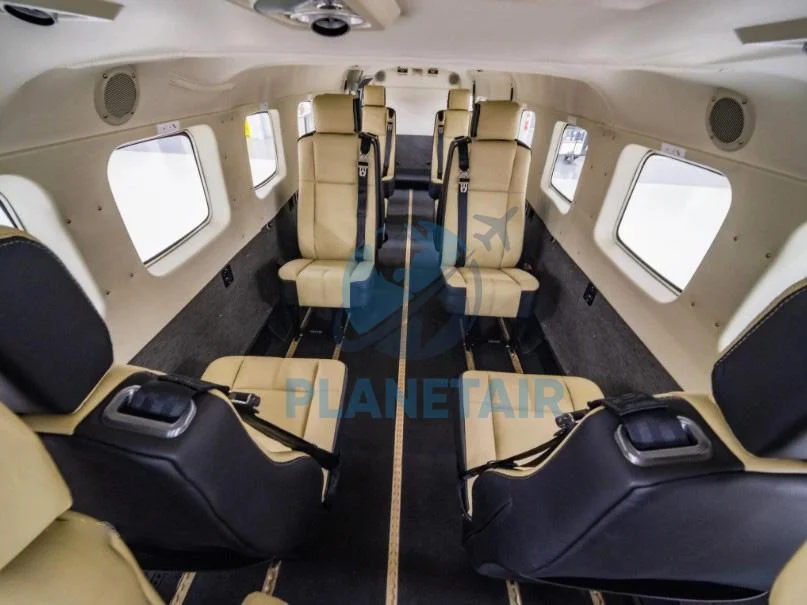

CABIN INTERIOR
| Height | 54 in (1.37 m) |
| Width | 64 in (1.63 m) |
| Length | 21 ft 4 in (6.50 m) |
| Maximum Occupants | 10 – 14 |

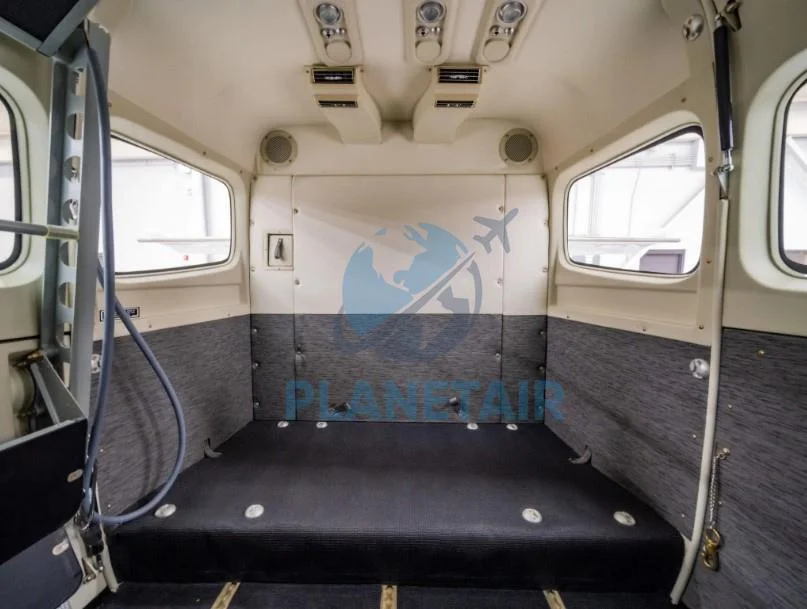

BAGGAGE CAPACITY
| Weight | 1,410 lb (640 kg) |
| Volume | 143 cu ft (4.05 cu m) |
WEIGHTS
| Maximum Ramp Weight | 8,842 lb (4,011 kg) |
| Maximum Takeoff Weight | 8,807 lb (3,995 kg) |
| Maximum Landing Weight | 8,500 lb (3,856 kg) |
| Usable Fuel Weight | 2,246 lb (1,019 kg) |
| Usable Fuel Volume | 335 gal (1,269 l) |
| Basic Empty Weight | 5,310 lb (2,409 kg) |
| Useful Load | 3,532 lb (1,602 kg) |
| Maximum Payload | 3,190 lb (1,447 kg) |
| Full Fuel Payload | 1,286 lb (583 kg) |
PERFORMANCE
| Maximum Cruise Speed | 185 ktas (343 km/h) |
| Maximum Range | 912 nm (1,689 km) |
| Takeoff Distance | 2,160 ft (658 m) |
| Takeoff Ground Roll | 1,399 ft (426 m) |
| Landing Distance | 1,836 ft (560 m) |
| Landing Ground Roll | 1,004 ft (306 m) |
| Maximum Operating Altitude | 25,000 ft (7,620 m) |
| Maximum Climb Rate | 1,275 fpm (389 mpm) |
POWERPLANT
| Manufacturer | Pratt & Whitney Canada |
| Model | PT6A-140 |
| Power Rating | 867 shp (647 kw) |
| Propeller Manufacturer | McCauley |
| Description | 4 blade aluminum, constant speed, full feathering |
- Ex Works
Valor de venda + impostos para nacionalização
Equipamentos:
- GDU 1050A Pilot and Copilot Primary Flight Displays (PFD)
- GDU 1050A Multifunction Display (MFD)
- GDC 72 Dual Air Data Computer (ADC)
- GEA 71 Engine/Airframe Unit
- GRS 79 Dual Attitude and Heading Reference System (AHRS)
- GMA 1360D Dual Audio System with bluetooth capability and 3D audio
- GTX 335R ADS-B Out Transponder
- Garmin Relative Terrain/Obstacles
- Garmin FliteCharts
- Garmin SafeTaxi
- Integrated VFR Sectional Charts
- IFR High and Low Altitude Charts with Auto/Day/Night Modes
- KN-63 DME
- Flight Stream 510 for wireless database uploads and flight plan transfers
A aeronave acima é de terceiros, os dados estão sujeitos a verificação.
DIMENSIONS
| Length | 41 ft 7 in (12.7 m) |
| Height | 15 ft 6 in (4.7 m) |
| Wingspan | 52 ft 1 in (15.9 m) |
| Wing Area | 279 sq ft (25.96 sq m) |
| Wheelbase | 13 ft 4 in (4.05 m) |
| Tread | 11 ft 8 in (3.56 m) |
CABIN INTERIOR
| Height | 54 in (1.37 m) |
| Width | 64 in (1.63 m) |
| Length | 21 ft 4 in (6.50 m) |
| Maximum Occupants | 10 – 14 |
BAGGAGE CAPACITY
| Weight | 1,410 lb (640 kg) |
| Volume | 143 cu ft (4.05 cu m) |
WEIGHTS
| Maximum Ramp Weight | 8,842 lb (4,011 kg) |
| Maximum Takeoff Weight | 8,807 lb (3,995 kg) |
| Maximum Landing Weight | 8,500 lb (3,856 kg) |
| Usable Fuel Weight | 2,246 lb (1,019 kg) |
| Usable Fuel Volume | 335 gal (1,269 l) |
| Basic Empty Weight | 5,310 lb (2,409 kg) |
| Useful Load | 3,532 lb (1,602 kg) |
| Maximum Payload | 3,190 lb (1,447 kg) |
| Full Fuel Payload | 1,286 lb (583 kg) |
PERFORMANCE
| Maximum Cruise Speed | 185 ktas (343 km/h) |
| Maximum Range | 912 nm (1,689 km) |
| Takeoff Distance | 2,160 ft (658 m) |
| Takeoff Ground Roll | 1,399 ft (426 m) |
| Landing Distance | 1,836 ft (560 m) |
| Landing Ground Roll | 1,004 ft (306 m) |
| Maximum Operating Altitude | 25,000 ft (7,620 m) |
| Maximum Climb Rate | 1,275 fpm (389 mpm) |
POWERPLANT
| Manufacturer | Pratt & Whitney Canada |
| Model | PT6A-140 |
| Power Rating | 867 shp (647 kw) |
| Propeller Manufacturer | McCauley |
| Description | 4 blade aluminum, constant speed, full feathering |
