Piper Meridian M500 PA-46-500TP – Ano 2016 – 930 H.T. *Ex-works
REF:
Preço sob consulta
Ano
Horas totais
Assentos
Condição
Localização
![](https://aviationstore101.com.br/wp-content/uploads/2022/12/br-flag.png)
![](https://aviationstore101.com.br/wp-content/uploads/2022/12/usa-flag.png)
Galeria do PDF (Não visível na página normal)
![](https://aviationstore101.com.br/wp-content/uploads/2022/04/Piper-M500-2016-a-venda-1-768x575.jpg.webp)
![](https://aviationstore101.com.br/wp-content/uploads/2022/04/Piper-M500-2016-a-venda-2-768x574.jpg.webp)
![](https://aviationstore101.com.br/wp-content/uploads/2022/04/Piper-M500-2016-a-venda-4-768x574.jpg.webp)
![](https://aviationstore101.com.br/wp-content/uploads/2022/04/Piper-M500-2016-a-venda-3-768x574.jpg.webp)
![](https://aviationstore101.com.br/wp-content/uploads/2022/04/Piper-M500-2016-a-venda-5-768x576.jpg.webp)
![](https://aviationstore101.com.br/wp-content/uploads/2022/04/Piper-M500-2016-a-venda-6-768x575.jpg.webp)
![](https://aviationstore101.com.br/wp-content/uploads/2022/04/Piper-M500-2016-a-venda-7-768x577.jpg.webp)
![](https://aviationstore101.com.br/wp-content/uploads/2022/04/Piper-M500-2016-a-venda-8-768x578.jpg.webp)
![](https://aviationstore101.com.br/wp-content/uploads/2022/04/Piper-M500-2016-a-venda-9-768x576.jpg.webp)
![](https://aviationstore101.com.br/wp-content/uploads/2022/04/Piper-M500-2016-a-venda-10-768x573.jpg.webp)
- Ex Works
Valor de venda + impostos para nacionalização
Equipamentos:

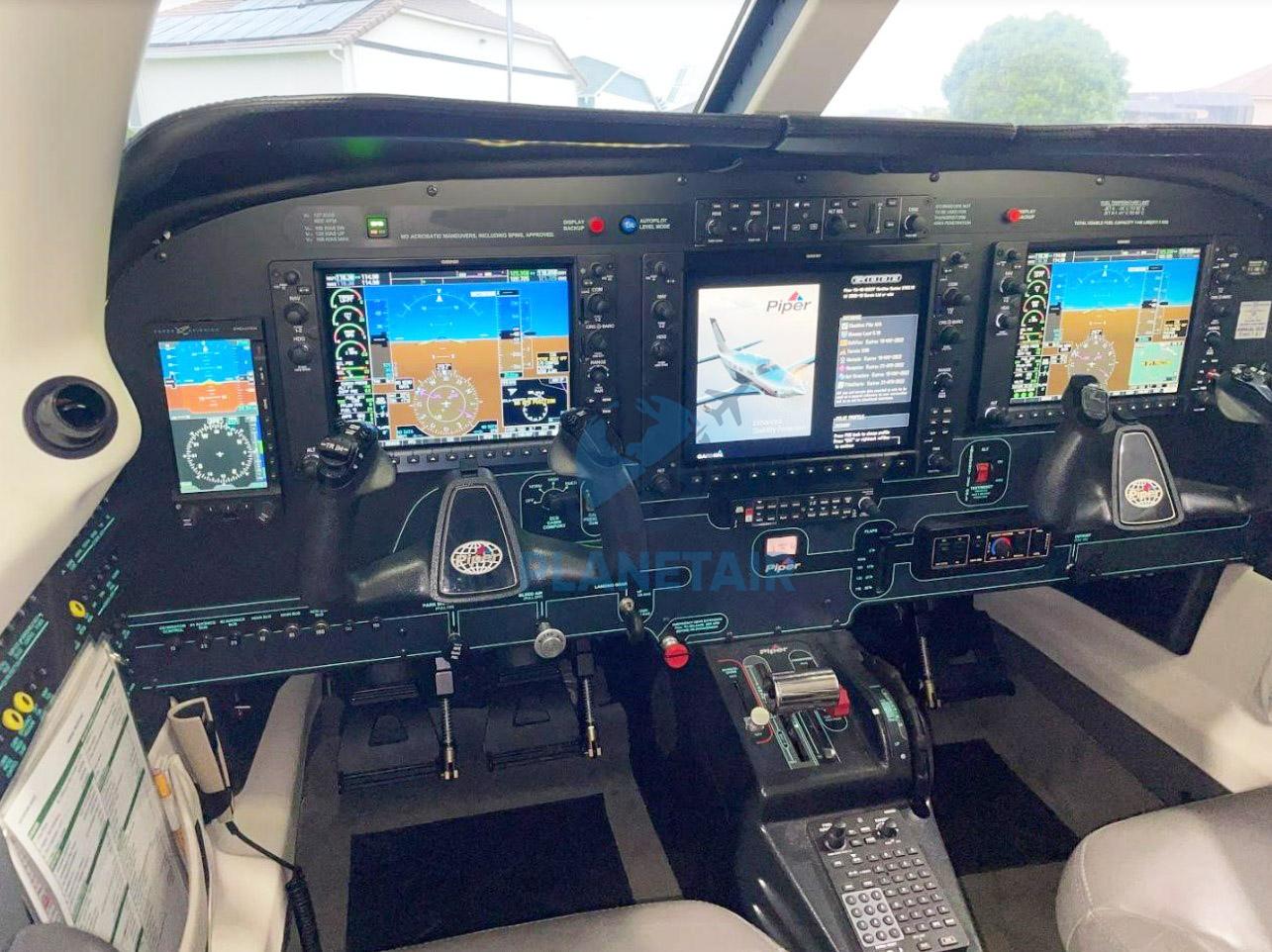

- Garmin G1000 Avionics Suite
- Synthetic Vision Technology (SVT)
- Pilot and Co-Pilot 10.4” PFDs 12.4” Multifunction Display
- Dual GIA 63W NAV/COMS (WAAS Enabled)
- GFC-700 Autopilot with Enhanced AFCS and GMC 710 Controller Integrated
- Yaw Damper System
- GWX 68 Weather
- Radar GTX 33ES Transponder (ADS-B out capability) GCU 476 Keypad
- Dual GDC 74A Air Data Computers
- GMA 350 Audio Panel w. 3-D Audio
- Aspen EFD 1000
- Standby Flight Instruments Garmin FliteCharts and SafeTaxi Enviro
- Digital Cabin Pressurization
Equipamentos Adicionais:
Premium Package 398 – Hartzell 5-Bladed Propeller 215 – 110 volt Power Outlet AMSAFE – AmSafe Seatbelts, Pilot / Co-pilot All Weather Package 269 – GDL 69A XM Radio /Weather w/ Remote 330 – WX-500 Stormscope Awareness Package 235 – Jeppesen ChartView 450 – TAWS-B 631 – GTX33 ES Second Transponder 825 – GTS 825 Traffic Advisory System Executive Inverness Interior
A aeronave acima é de terceiros, os dados estão sujeitos a verificação.
ENGINE
Pratt & Whitney Canada PT6A-42A
Horsepower: Flat Rated at 500 shp
TBO: 3,600 hours
Hot Section Inspection: 1,800 hours
PROPELLER
Hartzell 4-Blade | Constant Speed | Reversible
Diameter: 82 in | 208 cm
WEIGHTS
Maximum Takeoff Weight: 5,092 lbs | 2,310 kg
Maximum Ramp Weight: 5,134 lbs | 2,329 kg
Standard Equipped Weight: 3,436 lbs | 1,559 kg
Standard Useful Load: 1,698 lbs | 770 kg
MAXIMUM CRUISE SPEED
260 ktas | 482 km/h
FUEL CAPACITY, USABLE
170 US gal | 644 liters
RANGE WITH 45 MINUTE RESERVE
1,000 nm | 1,852 km
MAXIMUM APPROVED ALTITUDE
30,000 ft | 9,144 m
For RVSM Airspace:
28,000 ft | 8,534 m
TAKEOFF DISTANCE
Ground Roll: 1,650 ft | 503 m
Total Over 50 ft Obstacle: 2,438 ft | 743 m
LANDING DISTANCE
Ground Roll: 1,020 ft | 311 m
Total Over 50 ft Obstacle: 2,110 ft | 643 m
CABIN PRESSURIZATION
Maximum Cabin Differential: 5.6 psi
- Ex Works
Valor de venda + impostos para nacionalização
Equipamentos:
- Garmin G1000 Avionics Suite
- Synthetic Vision Technology (SVT)
- Pilot and Co-Pilot 10.4” PFDs 12.4” Multifunction Display
- Dual GIA 63W NAV/COMS (WAAS Enabled)
- GFC-700 Autopilot with Enhanced AFCS and GMC 710 Controller Integrated
- Yaw Damper System
- GWX 68 Weather
- Radar GTX 33ES Transponder (ADS-B out capability) GCU 476 Keypad
- Dual GDC 74A Air Data Computers
- GMA 350 Audio Panel w. 3-D Audio
- Aspen EFD 1000
- Standby Flight Instruments Garmin FliteCharts and SafeTaxi Enviro
- Digital Cabin Pressurization
Equipamentos Adicionais:
Premium Package 398 – Hartzell 5-Bladed Propeller 215 – 110 volt Power Outlet AMSAFE – AmSafe Seatbelts, Pilot / Co-pilot All Weather Package 269 – GDL 69A XM Radio /Weather w/ Remote 330 – WX-500 Stormscope Awareness Package 235 – Jeppesen ChartView 450 – TAWS-B 631 – GTX33 ES Second Transponder 825 – GTS 825 Traffic Advisory System Executive Inverness Interior
A aeronave acima é de terceiros, os dados estão sujeitos a verificação.
ENGINE
Pratt & Whitney Canada PT6A-42A
Horsepower: Flat Rated at 500 shp
TBO: 3,600 hours
Hot Section Inspection: 1,800 hours
PROPELLER
Hartzell 4-Blade | Constant Speed | Reversible
Diameter: 82 in | 208 cm
WEIGHTS
Maximum Takeoff Weight: 5,092 lbs | 2,310 kg
Maximum Ramp Weight: 5,134 lbs | 2,329 kg
Standard Equipped Weight: 3,436 lbs | 1,559 kg
Standard Useful Load: 1,698 lbs | 770 kg
MAXIMUM CRUISE SPEED
260 ktas | 482 km/h
FUEL CAPACITY, USABLE
170 US gal | 644 liters
RANGE WITH 45 MINUTE RESERVE
1,000 nm | 1,852 km
MAXIMUM APPROVED ALTITUDE
30,000 ft | 9,144 m
For RVSM Airspace:
28,000 ft | 8,534 m
TAKEOFF DISTANCE
Ground Roll: 1,650 ft | 503 m
Total Over 50 ft Obstacle: 2,438 ft | 743 m
LANDING DISTANCE
Ground Roll: 1,020 ft | 311 m
Total Over 50 ft Obstacle: 2,110 ft | 643 m
CABIN PRESSURIZATION
Maximum Cabin Differential: 5.6 psi
