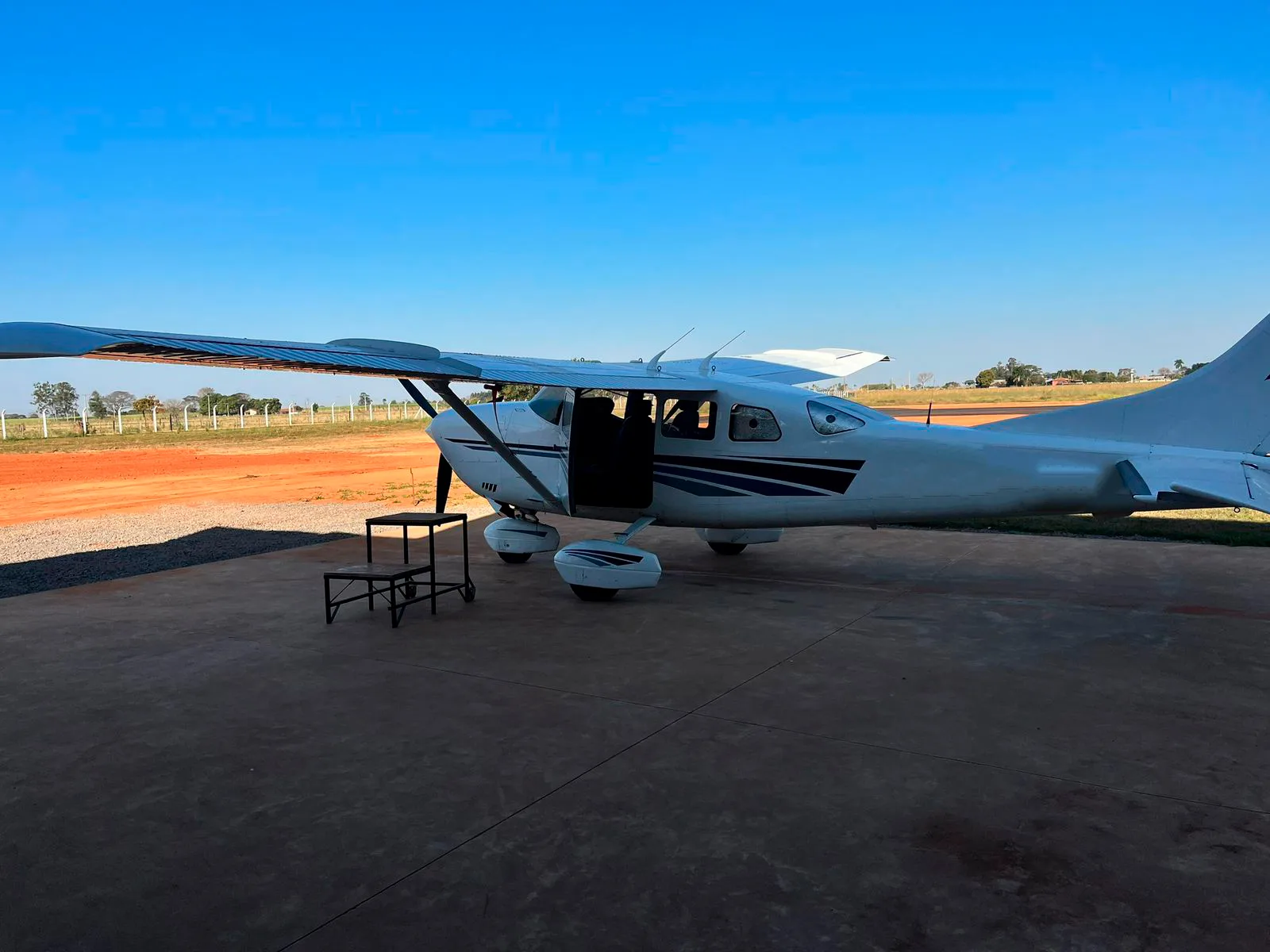

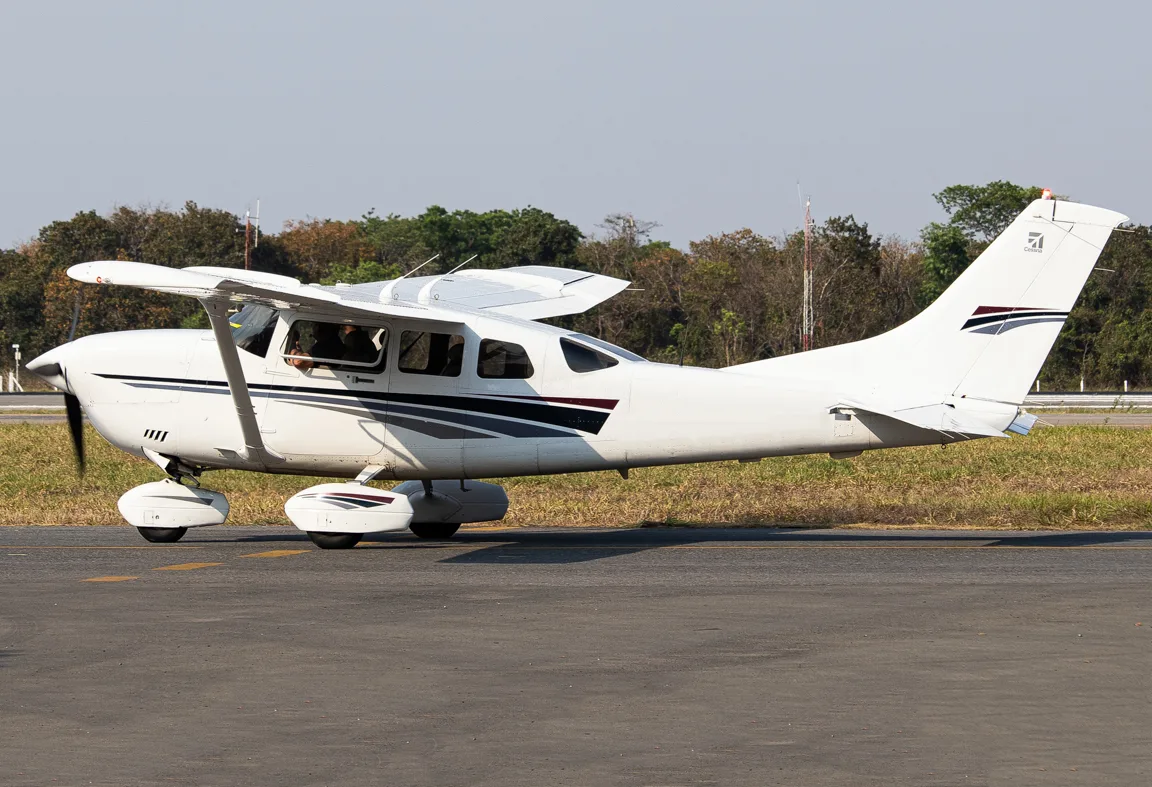

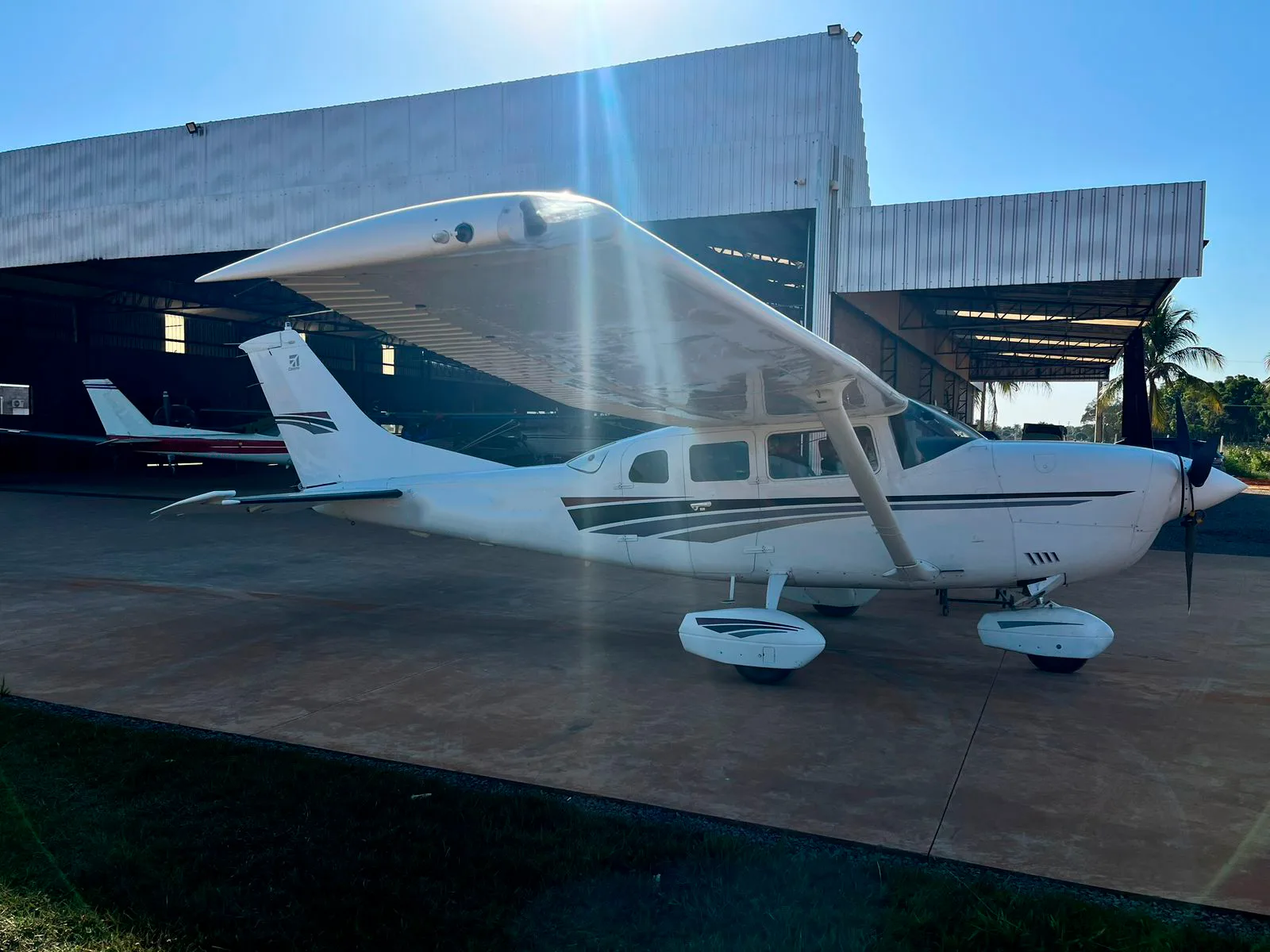

Exterior

• Exterior Height: 9 ft 4 in
• Wing Span: 36 ft 0 in
• Length: 28 ft 3 in

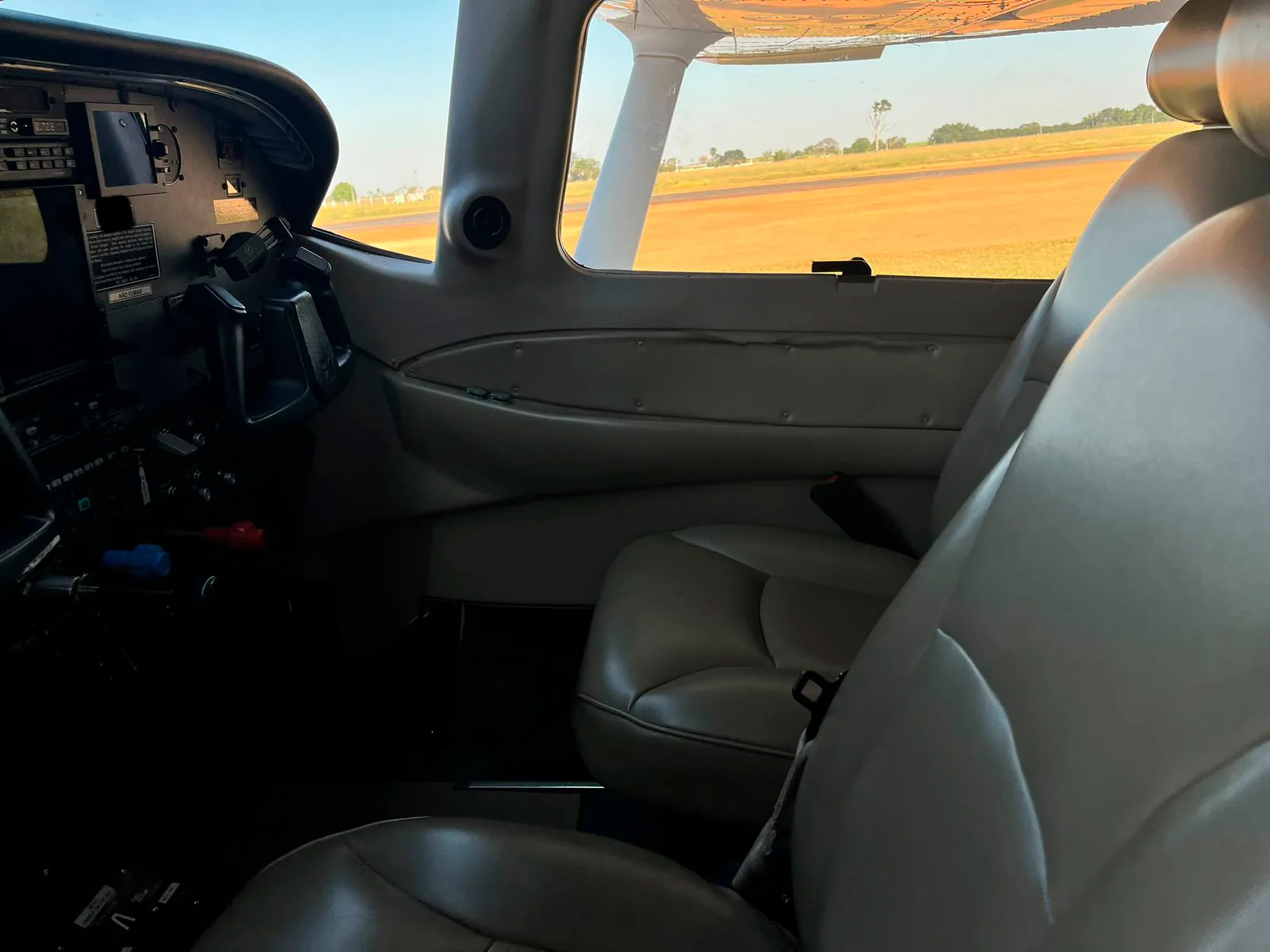

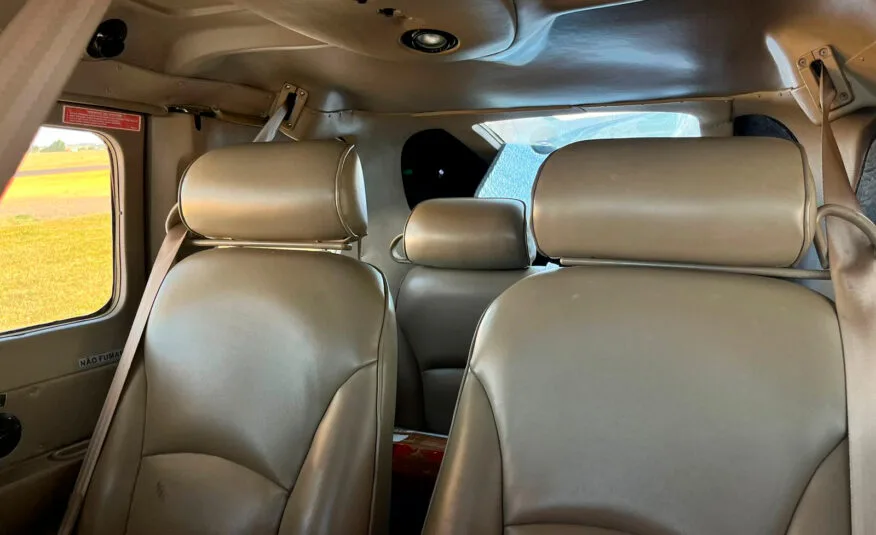

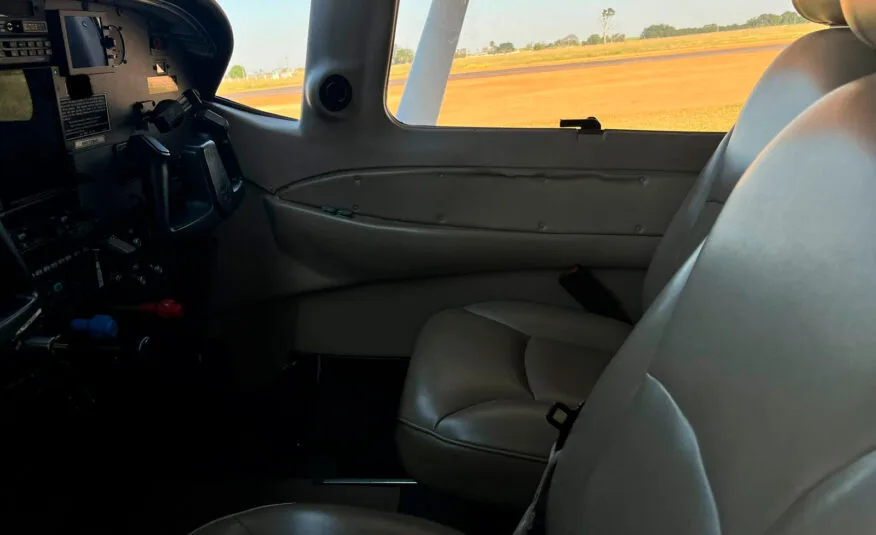

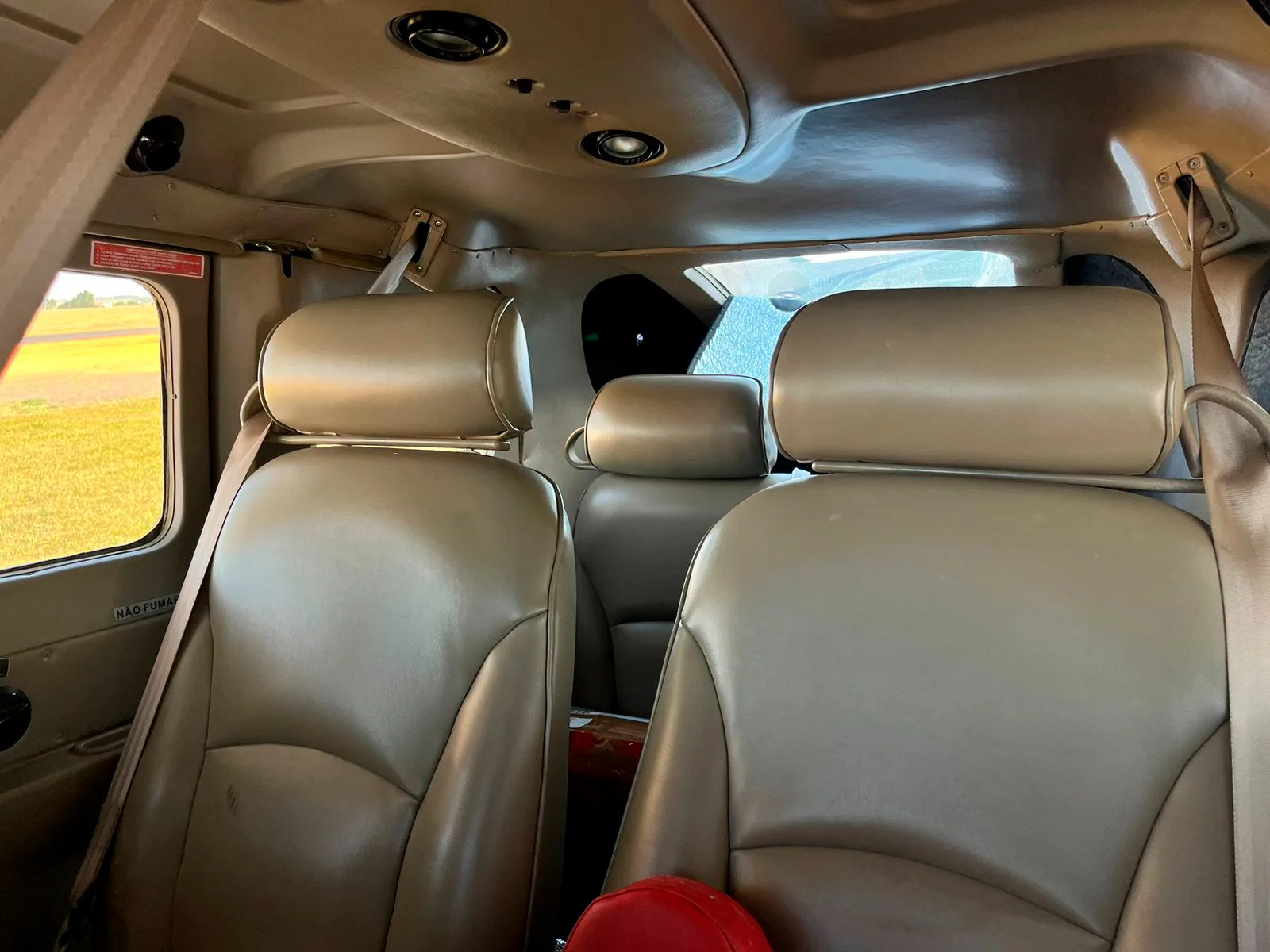

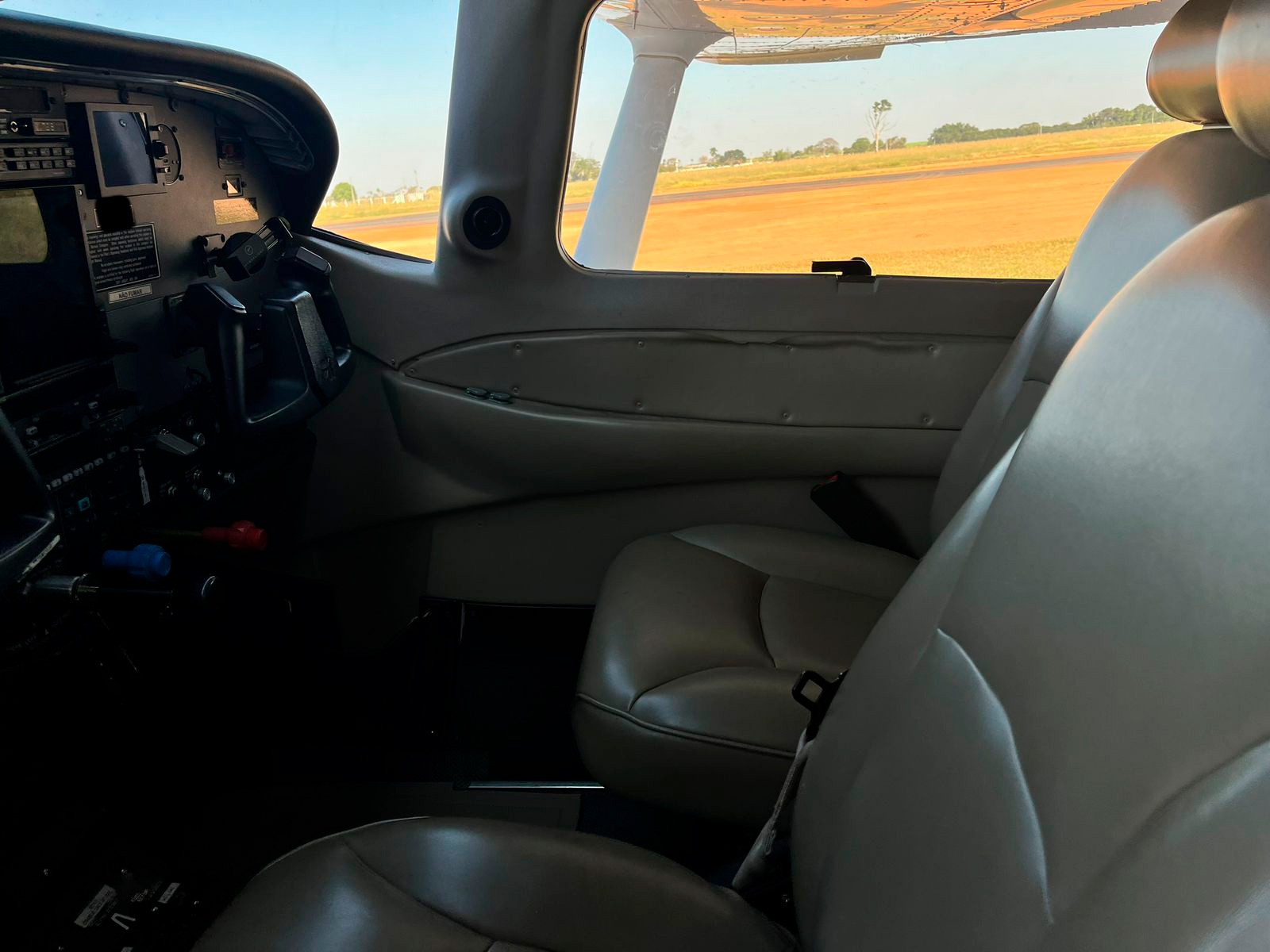

Interior

• Cabin Volume: 102 cu ft
• Internal Baggage: 11 cu ft

Occupancy

• Crew: 1
• Passengers: 5

Operating Weights

• Max T/O Weight: 3600 Lb
• Max Landing Weight: 3600 Lb
• Operating Weight: 2441 Lb
• Empty Weight: 2176 Lb
• Fuel Capacity: 522 lbs Lb
• Payload W/Full Fuel: 651 Lb
• Max Payload: 1159 Lb

Range

• Service Ceiling: 15700 ft

Distances

• Balanced Field Length: 1863 ft
• Landing Distance: 2358 ft

Performance

• Rate of Climb: 990 fpm
• Max Speed: 142 kts
• Normal Cruise: 128 kts
• Economy Cruise: 133 kts
• Cost per Hour: $ 208.37

Power Plant

• Engines: 1
• Engine Mfg: Lycoming
• Engine Model: IO-540-AC1A
