*Ex-works

Valor de venda + impostos para nacionalização

Equipamentos:

• Collins Pro Line 21

Engine 1

• Engine 1 Make/Model: PRATT & WHITNEY PT6A-135A
• Engine 1 Serial Number: PCE-PZ0702
• Engine 1 Time: 1,807 SNEW
• Engine 1 TBO: 3,600
• Hot Section Time 1: 15

Engine 2

• Engine 2 Make/Model: PRATT & WHITNEY PT6A-135A
• Engine 2 Serial Number: PCE-PZ0698
• Engine 2 Time: 1,807 SNEW
• Engine 2 TBO: 3,600
• Hot Section Time 2: 15

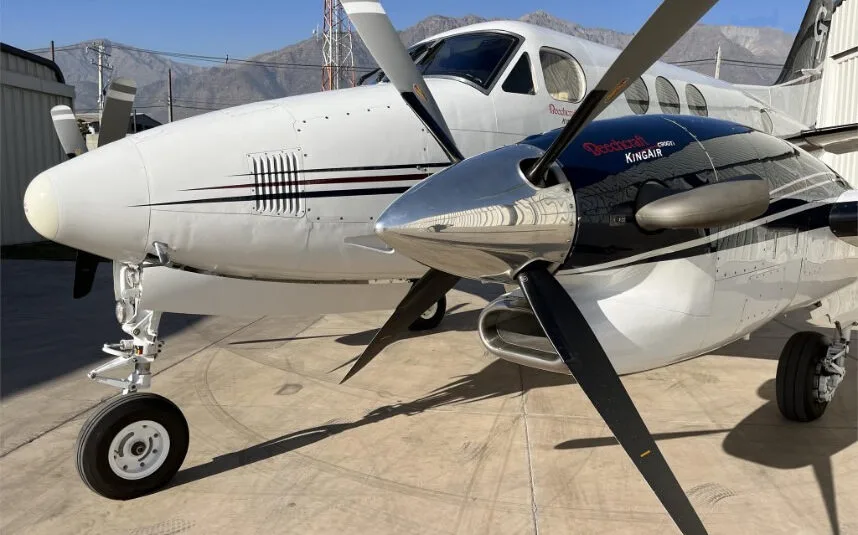

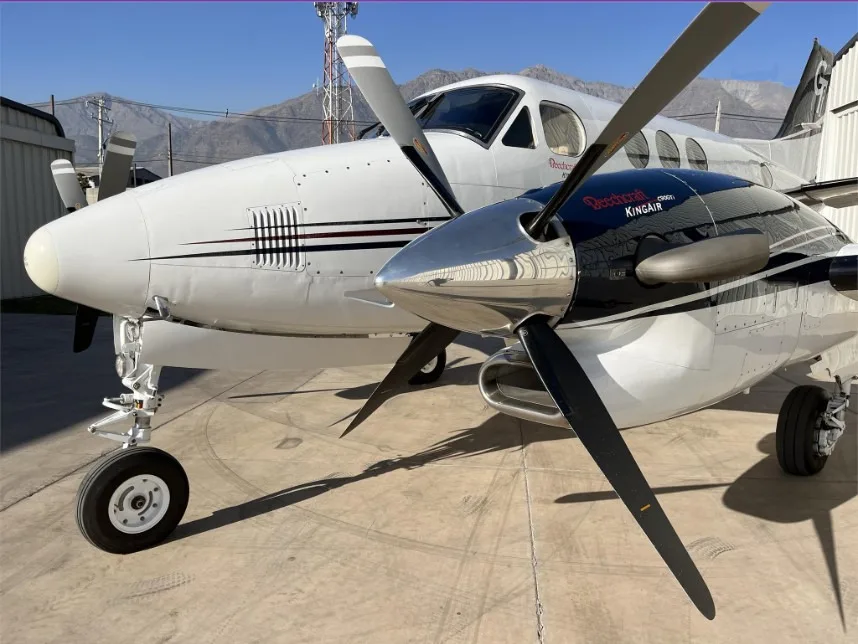

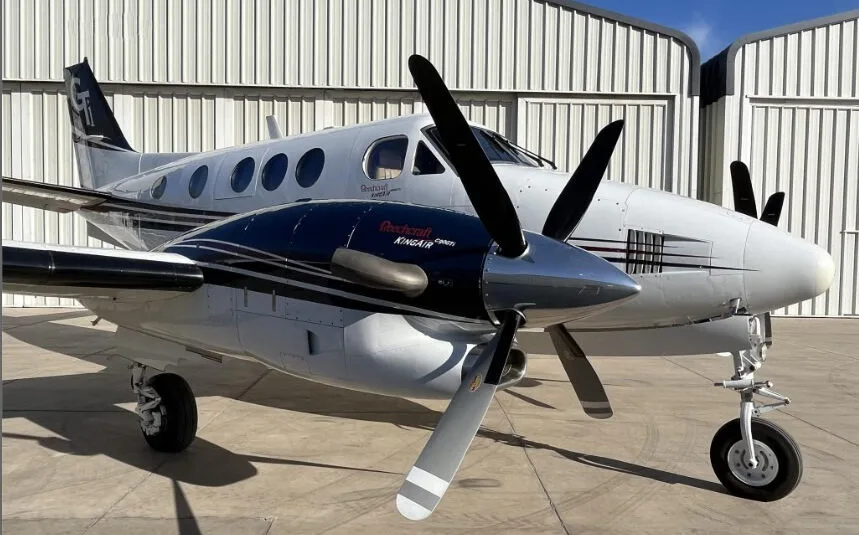

Props

• Prop 1 Manufacturer: HARTZELL
• Prop 1 Model: HC-E4N-3N
• Prop 1 Time: 714
• Prop 2 Manufacturer: HARTZELL
• Prop 2 Model: HC-E4N-3N
• Prop 2 Time: 714
• Number of Blades: 4

A aeronave acima é de terceiros, os dados estão sujeitos a verificação.

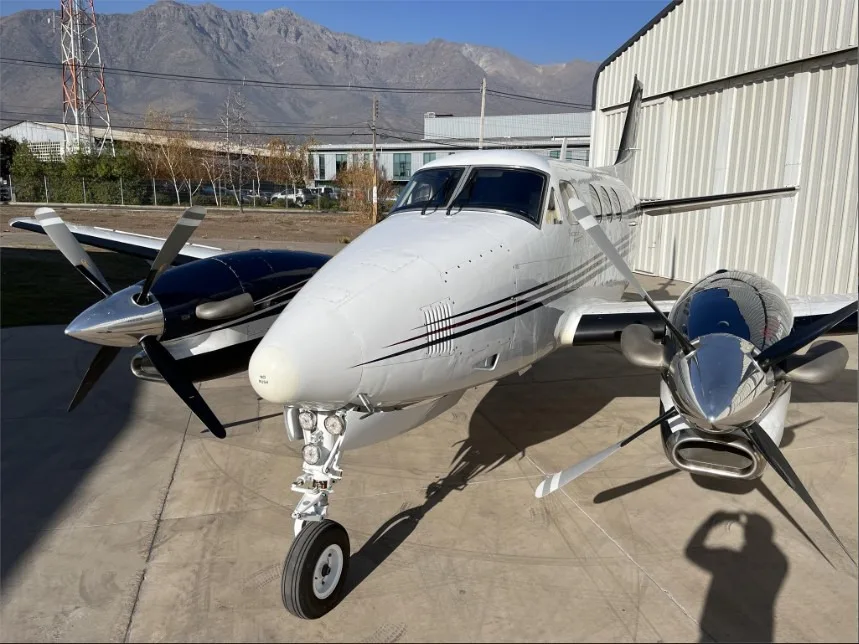

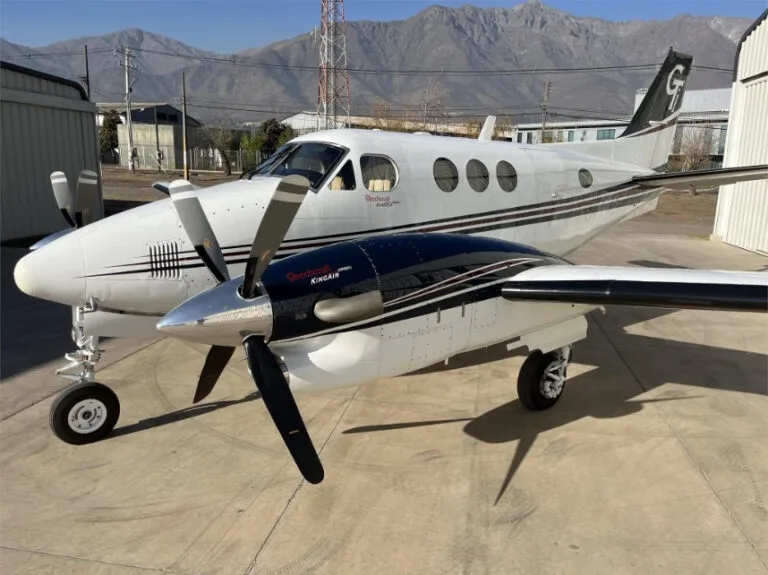

Exterior

• Exterior Height: 14 ft 3 in
• Wing Span: 50 ft 3 in
• Length: 35 ft 6 in

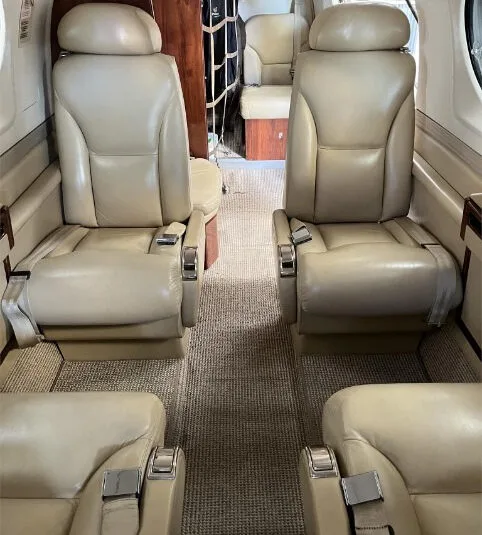

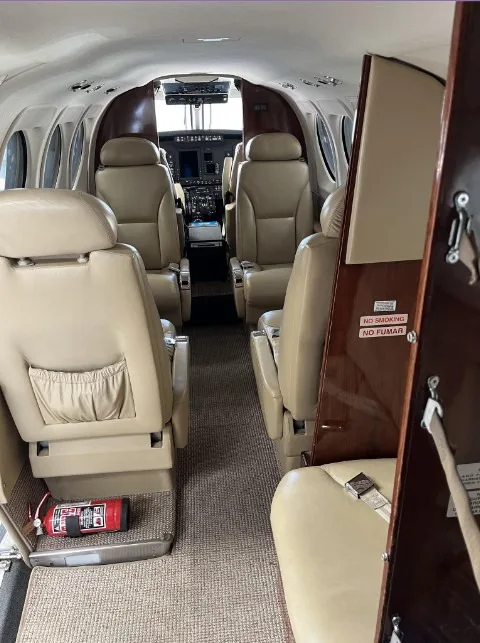

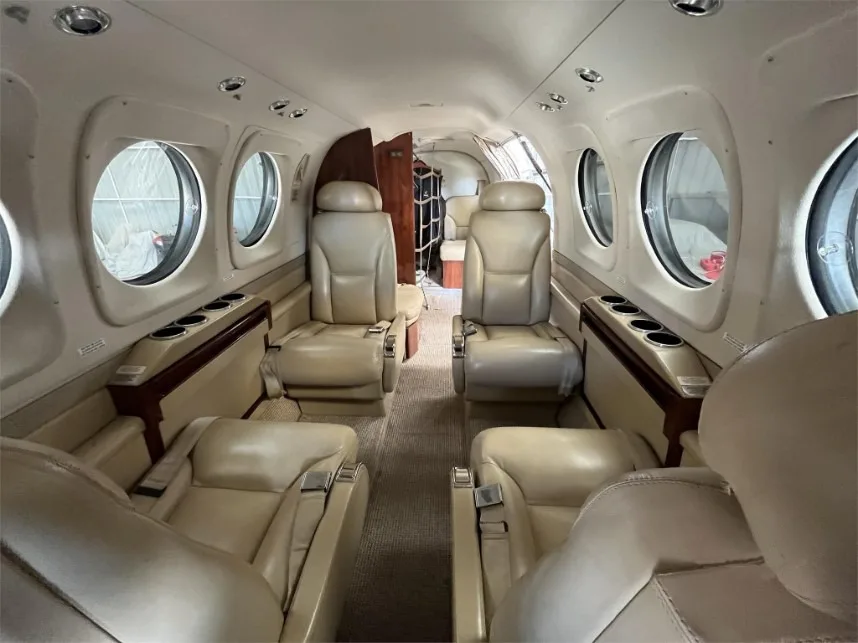

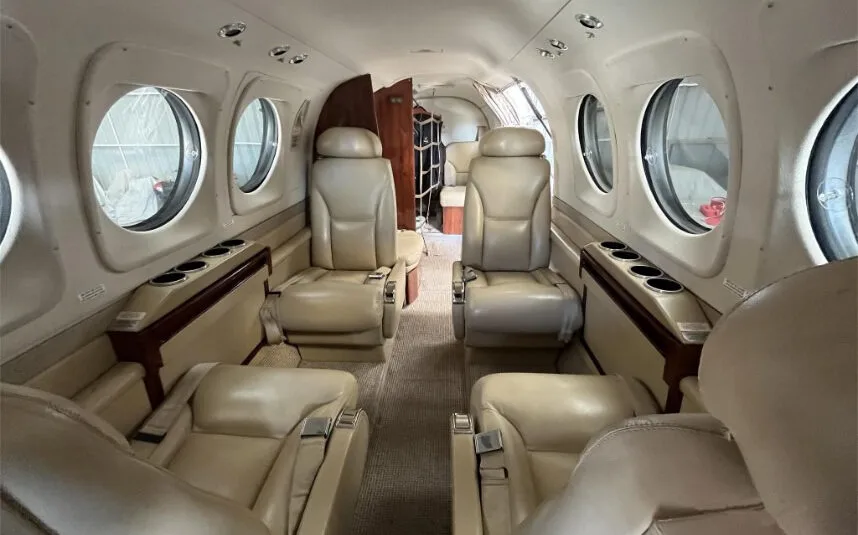

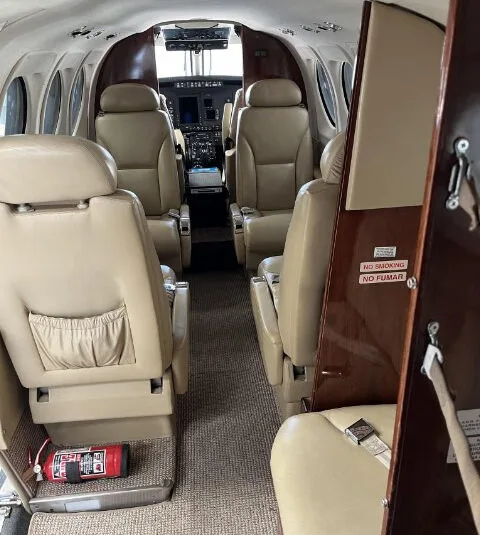

Interior

• Cabin Height: 4 ft 10 In
• Cabin Width: 4 ft 6 In
• Cabin Length: 12 ft 5 In
• Cabin Volume: 227 cu ft
• Door Height: 4 ft 3 In
• Door Width: 2 ft 3 In
• Internal Baggage: 48 cu ft

Occupancy

• Crew: 2

Passengers: 5-7

Operating Weights

• Max T/O Weight: 10100 Lb
• Max Landing Weight: 9600 Lb
• Operating Weight: 7200 Lb
• Empty Weight: 6950 Lb
• Fuel Capacity: 2573 lbs Lb
• Payload Useful: 3310 Lb
• Payload W/Full Fuel: 737 Lb
• Max Payload: 2306 Lb

Range

• Normal Range: 981 nm
• Max Range: 1321 nm
• Service Ceiling: 30000 ft

Distances

• Takeoff Distance: 2392 ft
• Balanced Field Length: 4519 ft
• Landing Distance: 4007 ft

Performance

• Rate of Climb: 1,953 fpm
• Climb Rate One Engine Inop: 474 fpm
• Max Speed: 270 kts
• Normal Cruise: 226 kts
• Economy Cruise: 206 kts

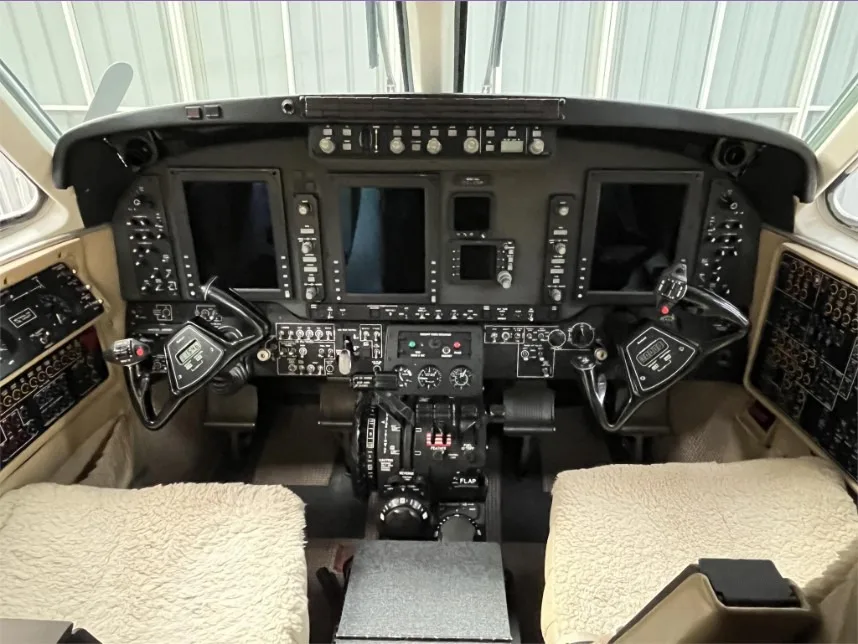

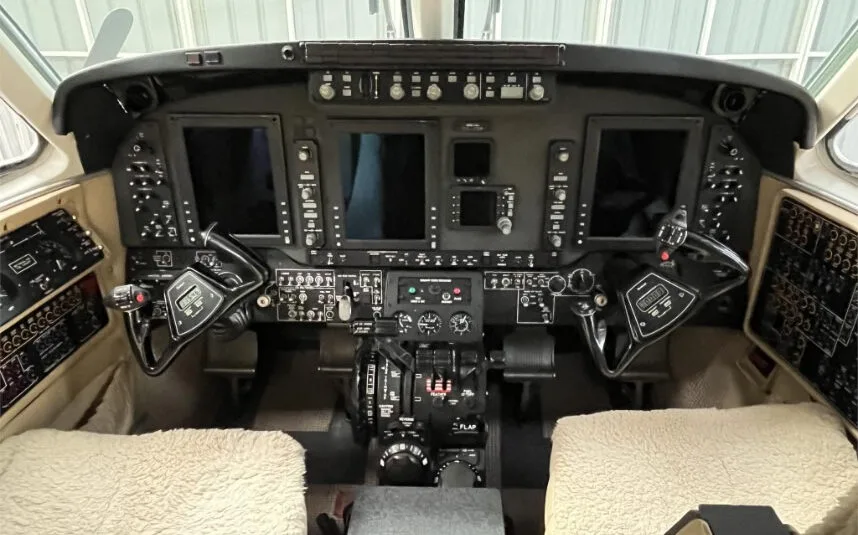

• Avionics: Rockwell Collins Pro Line 21

Power Plant

• Engines: 2
• Engine Mfg: Pratt & Whitney Canada
• Engine Model: PT6A-135A
• Horsepower: 750 shp
