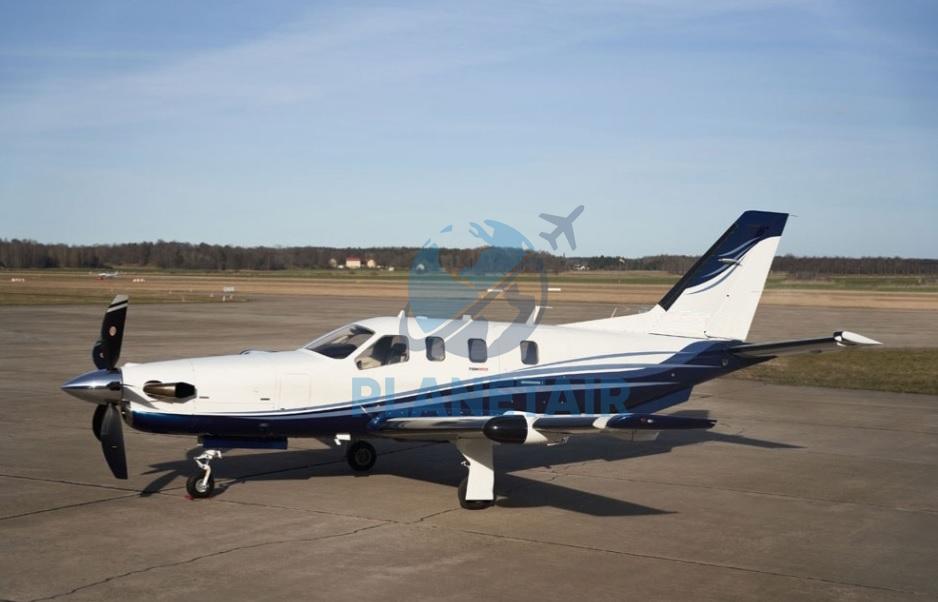

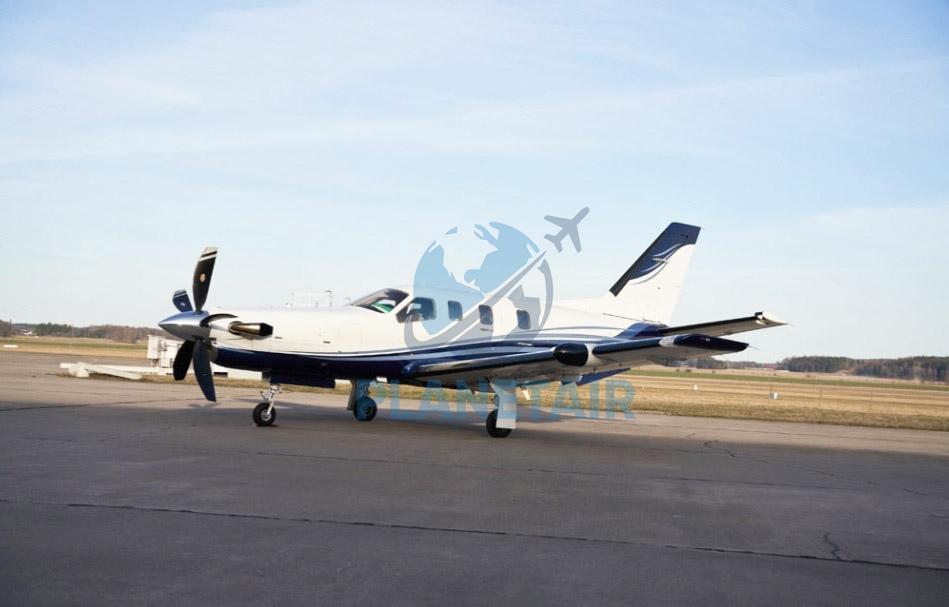

Daher Socata TBM850 – Ano 2010 – 1.131 H.T.

Avião turbo hélice

REF: AS5293

Preço sob consulta

Solicitar mais informações
Status
Vendida
Fabricante
Daher Socata
Modelo
TBM 850
Motor
PT6A-66D
Combustível
Jet A - Querosene
Ano
2010
Assentos
6
Condição
Usado
Localização
Horas totais​
1.131 H
Ano
2010
Horas totais
1.131 H
Assentos
6
Condição
Usado
Localização

Equipamentos:

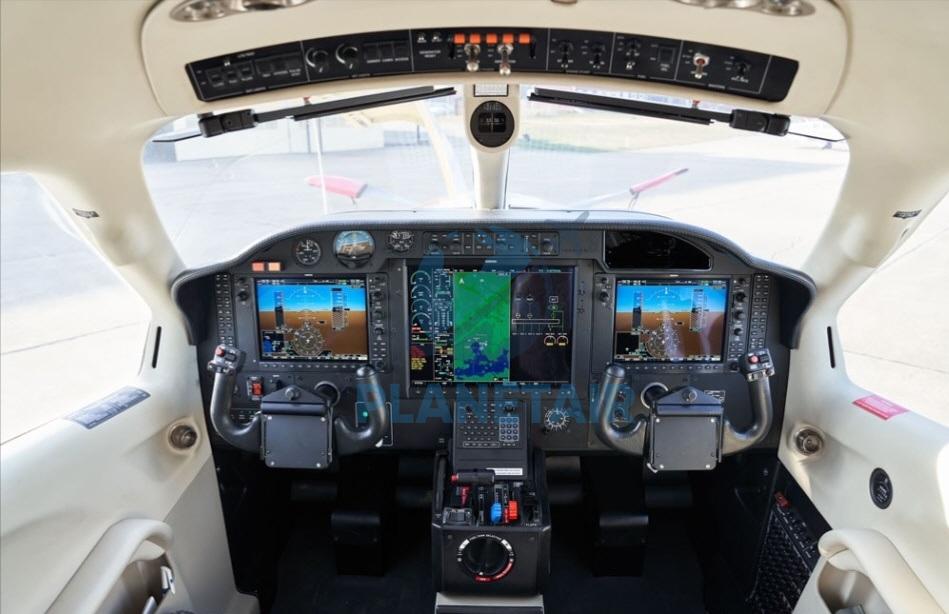

  • Garmin G1000 Avionics
  • Dual GDU 1040A 10” PDF
  • KN 63 DME
  • KRA 405B Radar Altimeter
  • Dual GMA 1347C Audio Controls
  • KTA 810 Traffic Advisory System
  • Chart View
  • Dual GDC 74B Air-data Computers
  • SVT Synthetic Visions
  • Dual GTX 33 Mode S Transponders
  • Single GDU 1500 15” MFD
  • TAWS-B w/Worldwide Database
  • Dual GIA 63W Nav/Com/WAAS GPS
  • WX 500 Stormscope
  • Dual GEA 71 Engine & Airframe Interface Units
  • GWX 68 Digital Radar
  • Dual GRS 77 AHRS
  • GDL 69A XM Weather Receiver
  • Dual GDU Triaxial Magnetometer

Exterior

  • Exterior Height: 14 ft 3 in
  • Wing Span: 41 ft 7 in
  • Length: 34 ft 11 in
  • External Baggage: 5.9 cu ft

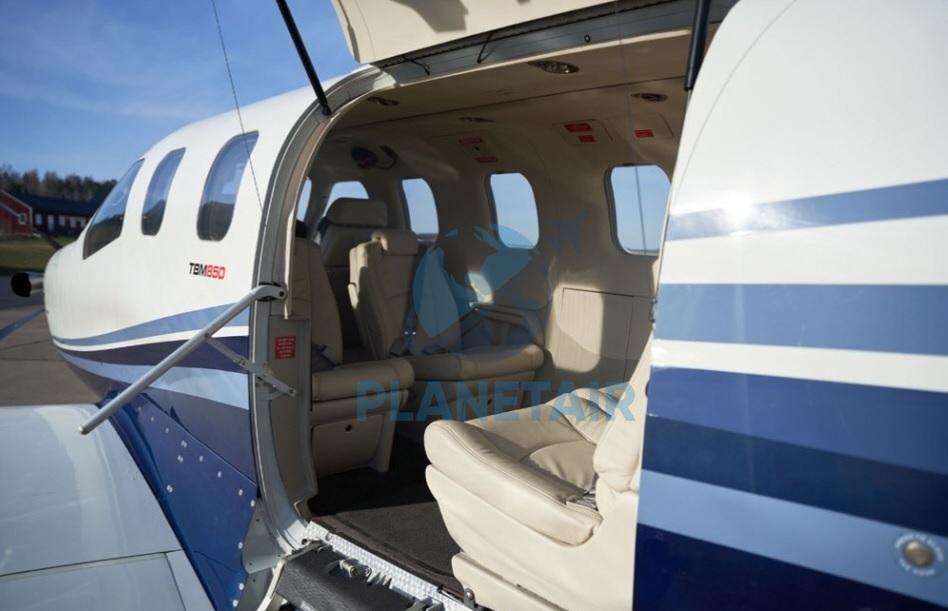

Interior

  • Cabin Height: 4 ft
  • Cabin Width: 3 ft 11 In
  • Cabin Length: 14 ft 11 In
  • Cabin Volume: 143 cu ft
  • Internal Baggage: 30 cu ft

Occupancy

  • Crew: 1
  • Passengers: 5-6

Operating Weights

  • Max T/O Weight: 7394 Lb
  • Max Landing Weight: 7024 Lb
  • Operating Weight: 4589 Lb
  • Empty Weight: 4589 Lb
  • Fuel Capacity: 1947 lbs Lb
  • Payload Useful: 2777 Lb
  • Payload W/Full Fuel: 931 Lb
  • Max Payload: 1443 Lb

Range

  • Normal Range: 1102 nm
  • Max Range: 1214 nm
  • Service Ceiling: 31000 ft

Distances

  • Balanced Field Length: 3100 ft
  • Landing Distance: 3750 ft

Performance

  • Rate of Climb: 2005 fpm
  • Max Speed: 320 kts
  • Normal Cruise: 316 kts
  • Economy Cruise: 255 kts
  • Cost per Hour: $ 936.27

Power Plant

  • Engines: 1
  • Engine Mfg: Pratt & Whitney Canada
  • Engine Model: PT6A-66D
