• Ex Works

Valor de venda + impostos para nacionalização

Equipamentos:

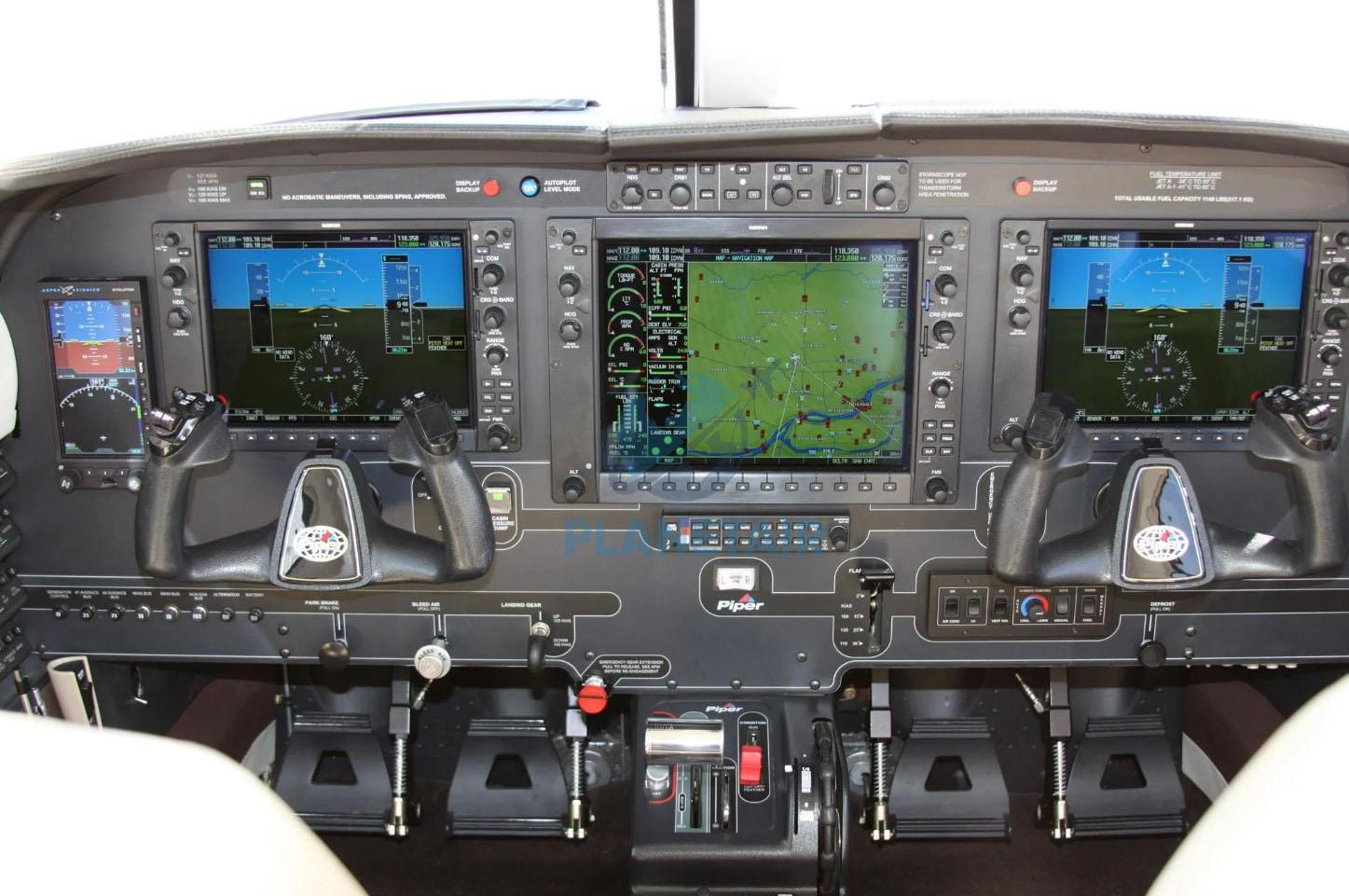

• Garmin G1000 Avionics Suite with Synthetic Vision Dual 10.4” PFDs, Single 12.4” MFD
• Dual GIA 63W NAV/COM/GPS
• GFC 700 Autopilot with Enhanced AFCS and GMC 710 AP Controller
• GCU 476 Keypad
• Garmin FliteCharts
• SafeTaxi
• GMA 350 Digital Audio Panel
• Dual GDC 74A Air Data Computers
• GTX 33 ES Mode S Transponder
• GWX 68 Weather Radar
• Aspen EFD 1000 Standby Flight Instruments
• Digital Cabin Pressurization
• ADS-B

Equipamentos Adicionais:

Flight Into Known Icing (FIKI), PiperAire Air Conditioning, Dual GRS77 AHRS Computers, Yaw Damper System (integrated with GFC 700), Hardwired Cockpit Bose A20 Headsets, Three USB Charging Ports (one cockpit, two cabin)

235 Jeppesen Chartview Garmin Enablement
269 GDL-69A XM Satellite Radio/Weather
330 WX-500 Stormscope
450 TAWS-B Terrain Awareness and Warning System
631 Second Digital Transponder – GTX33 ES
825 Traffic Advisory System GTS 825
710 Bottom Metallic Base Paint

A aeronave acima é de terceiros, os dados estão sujeitos a verificação.

ENGINE
Pratt & Whitney Canada PT6A-42A
Horsepower: Flat Rated at 500 shp
TBO: 3,600 hours
Hot Section Inspection: 1,800 hours

PROPELLER
Hartzell 4-Blade | Constant Speed | Reversible
Diameter: 82 in | 208 cm

WEIGHTS
Maximum Takeoff Weight: 5,092 lbs | 2,310 kg
Maximum Ramp Weight: 5,134 lbs | 2,329 kg
Standard Equipped Weight: 3,436 lbs | 1,559 kg
Standard Useful Load: 1,698 lbs | 770 kg

MAXIMUM CRUISE SPEED
260 ktas | 482 km/h

FUEL CAPACITY, USABLE
170 US gal | 644 liters

RANGE WITH 45 MINUTE RESERVE
1,000 nm | 1,852 km

MAXIMUM APPROVED ALTITUDE
30,000 ft | 9,144 m
For RVSM Airspace:
28,000 ft | 8,534 m

TAKEOFF DISTANCE
Ground Roll: 1,650 ft | 503 m
Total Over 50 ft Obstacle: 2,438 ft | 743 m

LANDING DISTANCE
Ground Roll: 1,020 ft | 311 m
Total Over 50 ft Obstacle: 2,110 ft | 643 m

CABIN PRESSURIZATION
Maximum Cabin Differential: 5.6 psi
